Contents |
Product Detail |

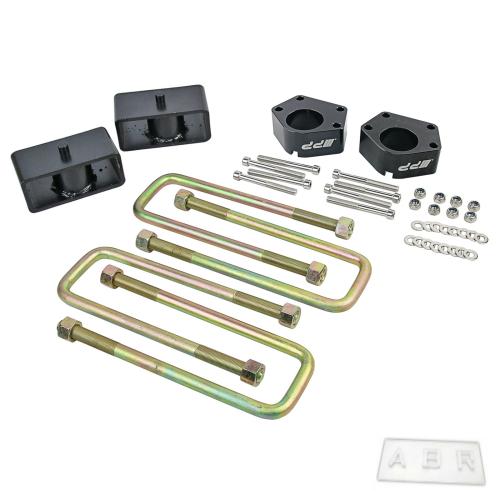

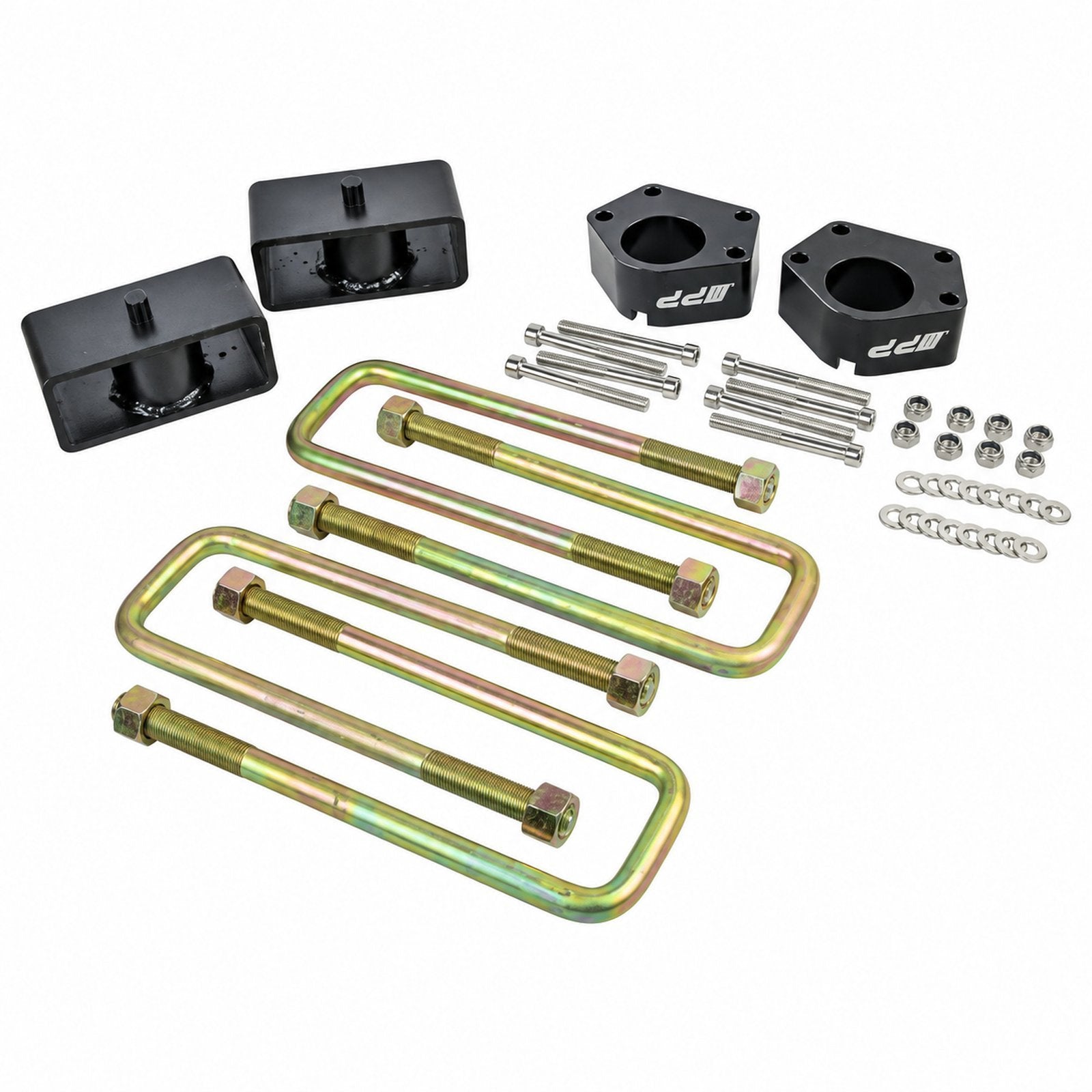

Lift Kit |
Size |
36 (L) x 23 (W) x 14 (H) |
Weight (V) |
2.5 KG |
Weight (A) |
6 KG |
Reference |
L-UMO |
Product Overview :
DD built spacers are 1.5"/38mm tall and provide about that much front suspension lift over stock suspension settings as well as that much more overall front suspension travel. Actual front lift height will depend upon the vehicle's weight distribution and current torsion bar condition and adjustment which may be 1.5" more or less than the spacer height. Whether or not you prefer enhanced cression travel for high speed trips through desert washes or a balance between cression and extension travel more suited for rocky trails, these spacers will increase your functionality and ability to custom tailor your suspension characteristics while increasing clearance between the fenders and front wheels.

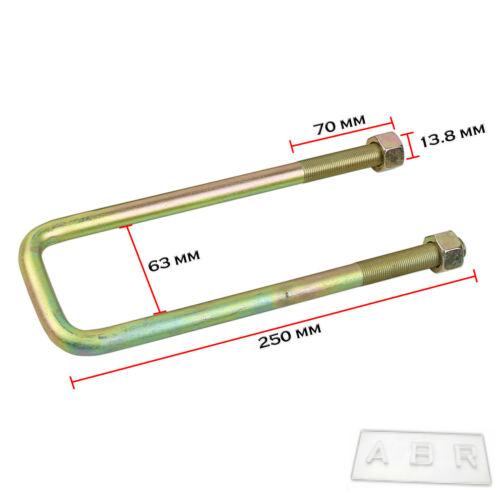

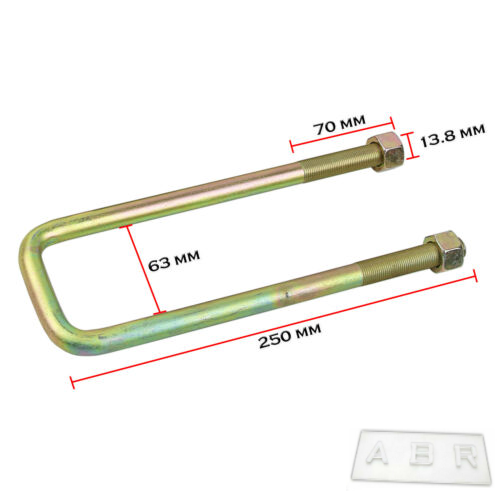

Our DD kits are built as a solid piece and will not bend or warp when stress is applied. We clete this kit with high grade hardware and extended OEM spec zinc plated U-bolts. Installation of this parts will improve Driving responsiveness and handling. This product is designed to fitted specifically and precisely to the factory mounting points.
The lift spacer is NOT a 1:1 ratio - Meaning that the lift height achieved is much greater than the actual thickness of the spacer. The reason is that the lower control arm counds the amount of lift due to its angle and length.
Product Fits
-
- 1986 - 1988 Toyota Hilux N50 / N60 / N70 ( w/ front torsion bars )
- 1989 - 1997 Toyota Hilux N80 / N90 / N100 / N110 ( w/ front torsion bars )
- 1997 - 2004 Toyota Hilux N140 / N150 / N160 / N170 ( w/ front torsion bars )
- 1984 - 1989 Toyota 4Runner ( a.k.a. Toyota Hilux Surf ) N60
- 1990 - 1995 Toyota 4Runner ( a.k.a. Toyota Hilux Surf ) N120 / N130
- 1993 - 1998 Toyota T100
Product Features
-
- 100% Brand New
- IFS Ball Joint Spacers
- Standard 1-1/2" (38mm) height, custom heights available
- No Corroding , Rusting , Breaking, or Road Vibration ( Compare with iron block Adapter )

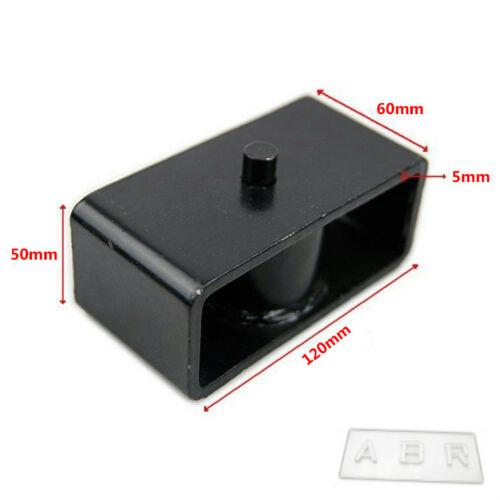

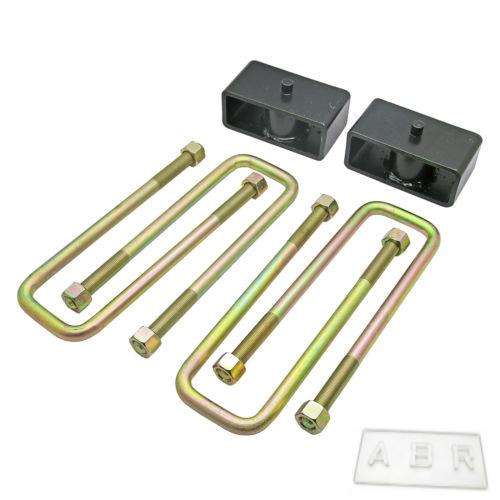

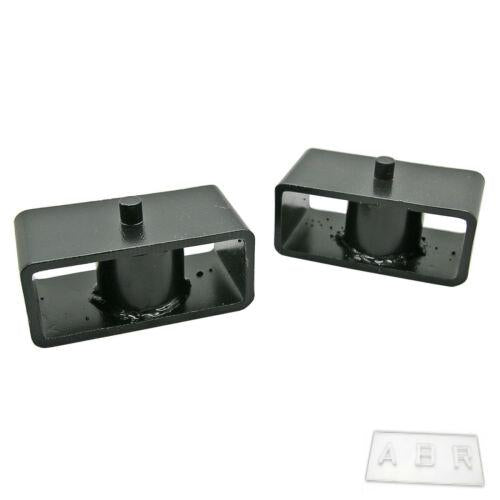

- Fully CNC machined T6061 aluminum Laser Cut 50mm rear leaf spring block adapter
Buyer Tips
-
- Not Including Installation Guide or Manual
- Professional Installation is Recommended
- No returns or exchange once installed
- Please make sure your Leaf Spring is installed above the Axle ( Please refer to picture )
- Some model types of Hilux Upper Arm ball joint holder need to be cut to fit in ball joint spacer
