Product Overview :

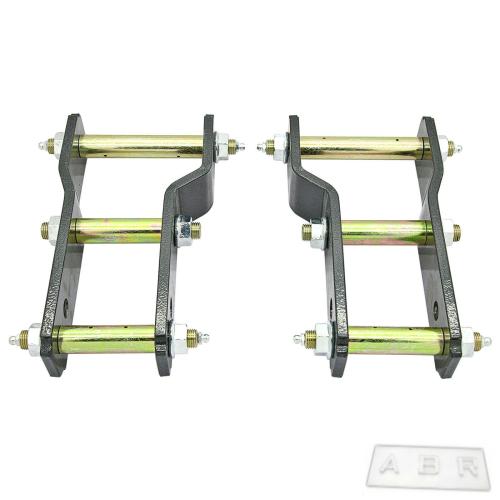

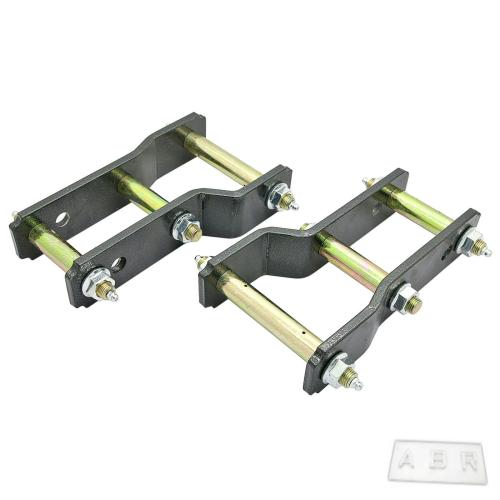

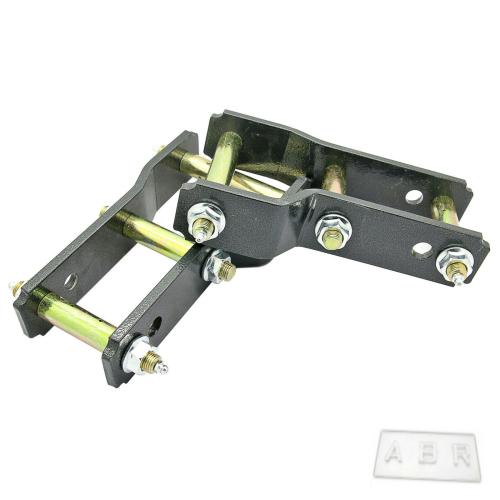

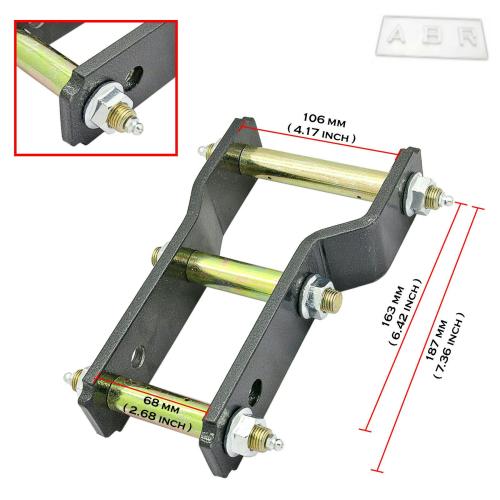

Extended Shackles :
- Greasable Shackle
- It will a much smooth ride on or offroad as the shackles are able
to move with the leaf spring giving a much more linear stress reduced
suspension action.
- Greasable pins are used to ensure a comfortable ride that also accept standard bushes.
- The greasable pins are pressed and then welded in to stop them from working loose and wearing the shackles plates.
- The greasable nipples are encapsulated in the nut to avoid being damage offroad.
- All extended shackles incorporate a stepped bolt design, ensuring
that the shackles cannot be overtightened, resulting in deformation of
the bushings.
- These shackles which will give you approximately 2" inch ( 45-48 mm
) of extra lift due to the fact that you are raising just one end of
the spring.

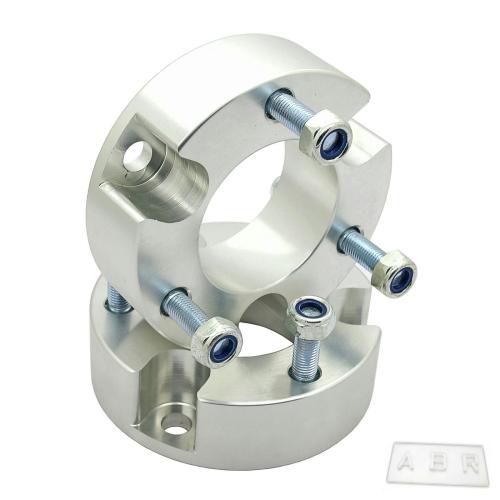

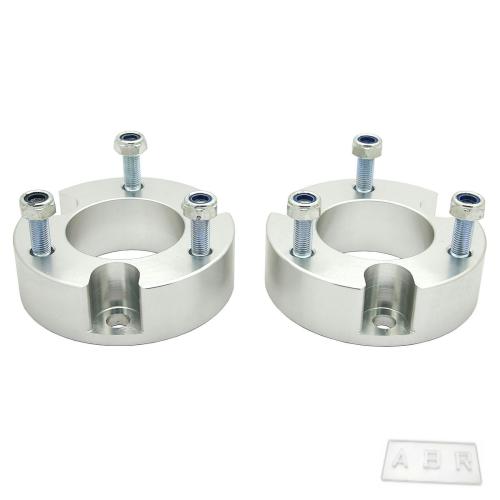

Front Aluminium 35 mm Shock Spacer :

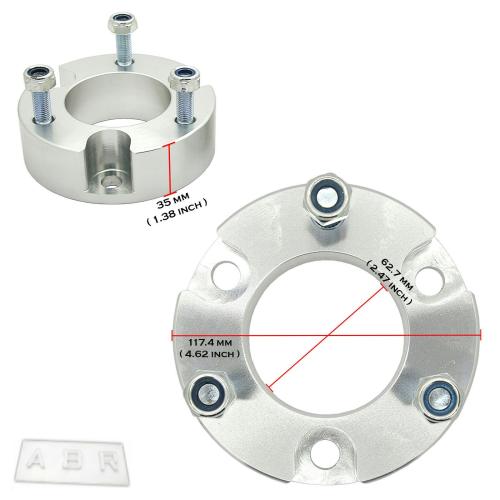

- These spacers are 35 mm thick and will lift the front of your car around 2.5"-2.8" inch ( 64-68 mm ).
- The spacers pictured are thicker for a bigger lift. The 35 mm
spacers fit on top of your strut top using the original studs and nuts.
No studs of nuts are supplies with this kit as they are not needed.
- The lift spacer is NOT a 1:1 ratio - Meaning that the lift height
achieved is much greater than the actual thickness of the spacer. The
reason is that the lower control arm counds the amount of lift due to
its angle and length.
Features :
- 100% Brand New
- Top quality extended shackles suitable for vehicles engineered to
the highest standard. Will provide approximately 2" inch ( 45-48 mm ) of
lift.
- You can use these with your standard suspension or with aftermarket
suspension to help level out the typical nose down appearance that the
4x4 Vehicles have.
Notes :
- Not included Installation Guide or Manual
- Professional Installation is Recommended
- Rear Exhaust pipe and Shackle maybe touching each other. Rear
Exhaust Piping need to adjust a bit, to create some space between
shackle and exhaust pipe
Fit For :
- 2012 - 2018 Ranger PX PXII 4WD Model
- 2012 - 2020 Mazda BT50 4WD Model
*** Please make sure it fits your cars before purchase ***

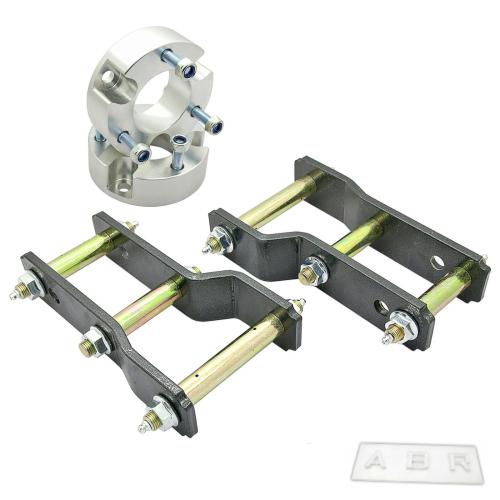

Package Content :
- 2 x Shackles w/ Greasable Pins
- 2 x Shock Spacers
Packing Size : 24 x 18 x 24 cm
Packing Weight : 6.5 kg*
