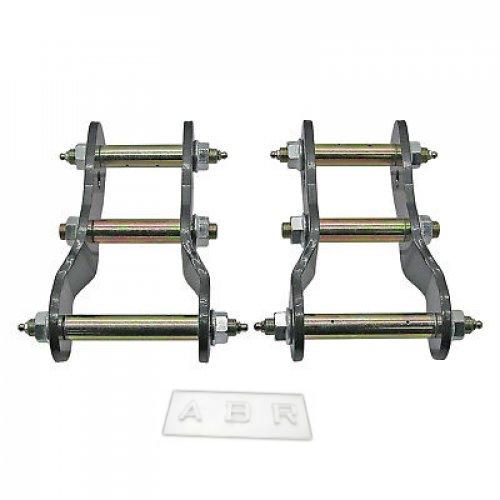

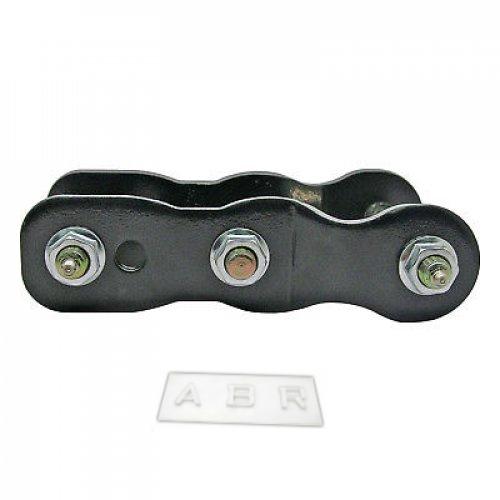

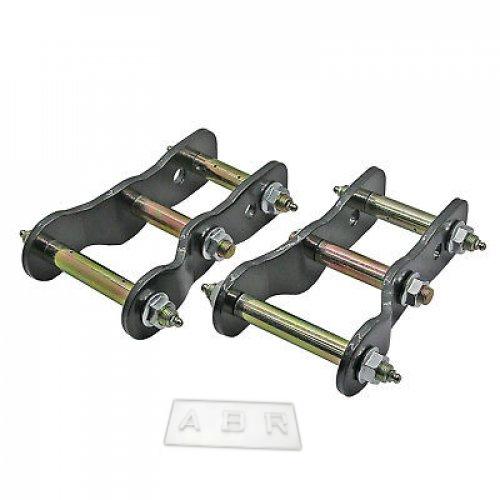

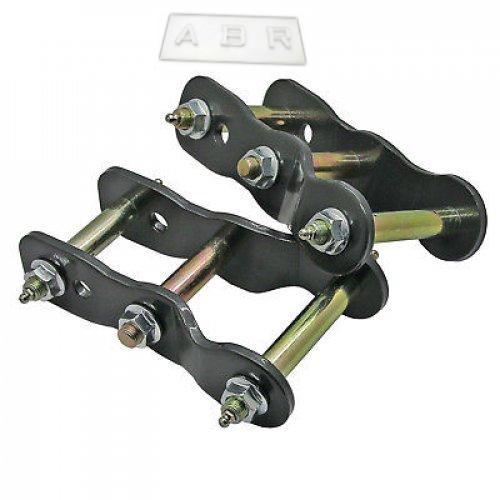

2" Rear Extended Greasable Shackle Lift Kit For Toyota Hilux Vigo KUN26 2005-16

Product Fits

• Hilux Vigo KUN26 GGN25 2005-2016 4WD

Product Info

• ~ Greasable Shackles

  ~ It will a much more smooth ride on or off-road as the shackles are able to move with the leaf spring giving a much more linear stress reduced suspension action.
  ~ Greasable pins are used to ensure a comfortable ride that also accept standard bushes.

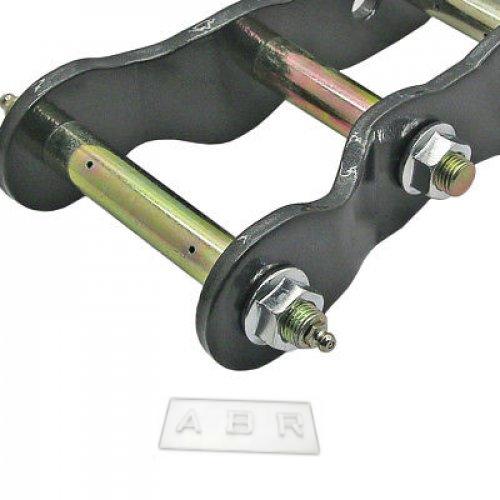

  ~ The greasable pins are pressed and then welded in to stop them from working loose and wearing the shackles plates.
  ~ The greasable nipples are encapsulated in the nut to avoid being damage offroad.
  ~ All extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.
  ~ These shackles will give you approximately 2""inch (45-48mm) of extra lift due to the fact that you are raising just one end of the spring.

Buyer Tips

• - It is a simple job to install with basic hand tools.
  - You can use these with your standard suspension or with aftermarket suspension to help level out the typical nose down appearance that the 4x4 Vehicle have.
  - Installation Manual are not included

  - Professional Installation is Recommended

  - Rear Exhaust pipe and Shackle maybe touching each other. Rear Exhaust Piping need to adjust a bit, to create some space between shackle and exhaust pipe
