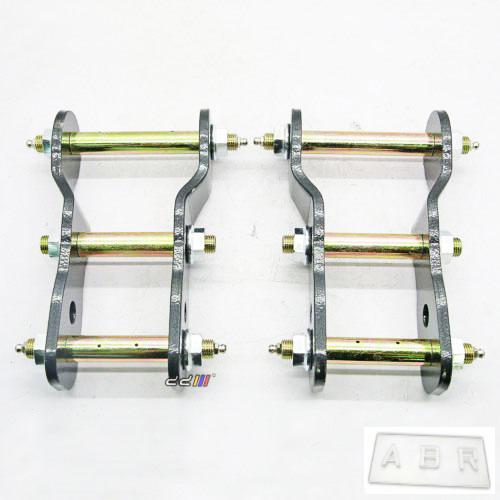

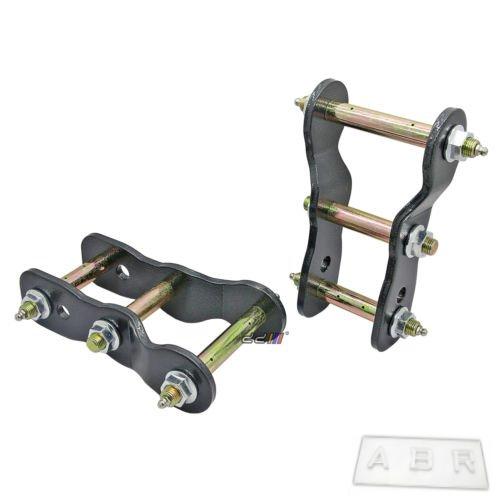

2" Rear Lift Kit Greasable Shackles For Isuzu D-Max Dmax TFR TFS 2012

Product Fits

• - 2012 - 2020  Isuzu D-Max [ TFR / TFS ]

  - 2012 - 2016 Chevrolet Colorado [ RG ] ( a.k.a. Holden Colorado )

Product Info

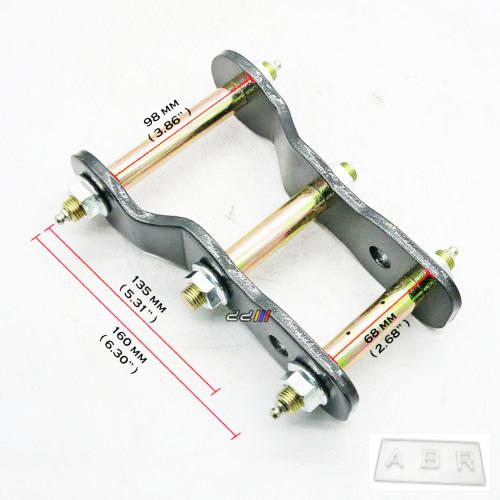

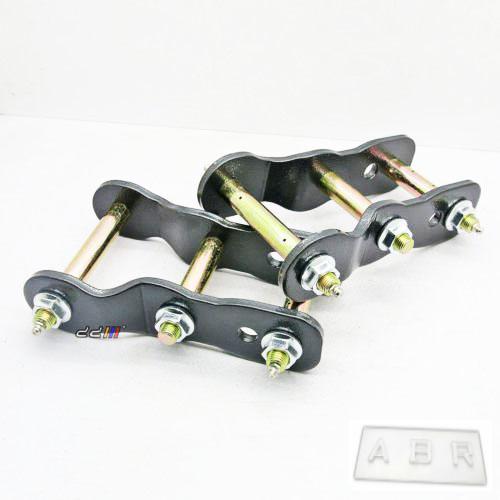

• Extended Shackles :

  - Greasable Shackle

  - It will a much smooth ride on or offroad as the shackles are able to move with the leaf spring giving a much more linear stress reduced suspension action.

  - Greasable pins are used to ensure a comfortable ride that also accept standard bushes.

  - The greasable pins are pressed and then welded in to stop them from working loose and wearing the shackles plates.

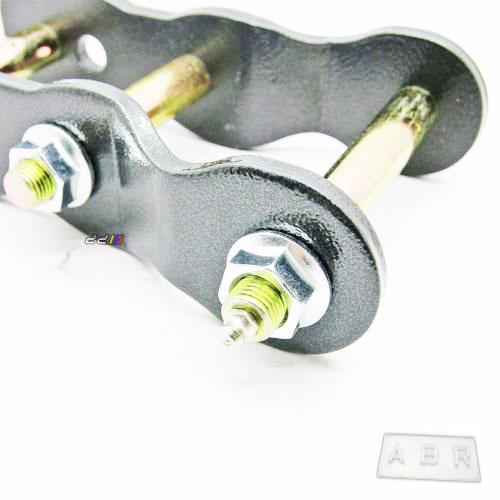

  - The greasable nipples are encapsulated in the nut to avoid being damage offroad.

  - All extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.

  - These shackles which will give you approximately 2" inch ( 45-48 mm ) of extra lift due to the fact that you are raising just one end of the spring.

Product Features

• - 100% Brand New

  - Top quality extended shackles suitable for vehicles engineered to the highest standard. Will provide approximately 2" inch ( 45-48 mm ) of lift.

  - You can use these with your standard suspension or with aftermarket suspension to help level out the typical nose down appearance that the 4x4 Vehicles have.

Buyer Tips

• - Not including Installation Guide or Manual

  - Professional Installation is Recommended

  - Rear Exhaust pipe and Shackle maybe touching each other. Rear Exhaust Piping need to adjust a bit, to create some space between shackle and exhaust pipe

  - Please make sure your Leaf Spring is installed above the Axle ( Please refer to picture )

  - Does not fit for US SPEC CHEVROLET COLORADO
