Front Bolt On Diff Drop Kit For Isuzu D-Max Pickup 2.5 3.0 4WD 4x4 2012ON

Product Overview :

When lifting IFS Vehicles, the Constant Velocity (CV) joints are put on an increased angle. This increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting additional stress on the CV boots leading to splitting and eventually premature failure of the CV. This wear is accelerated further if larger (wider) wheels and tyres are fitted. Our IFS Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV’s, lowering the front diff by approx. 30mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV’s and boots.

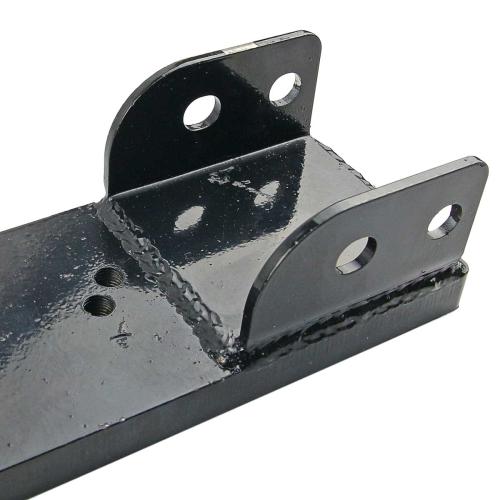

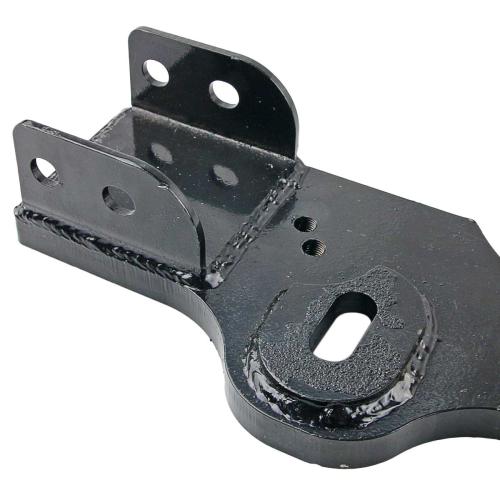

It comes complete with new crossmember and alloy spacers. The crossmember is manufactured from solid flame cut 15mm steel, with a recessed machined diff mounting boss, to avoid damage to the diff bolt head when driving offroad. The crossmember is e-coated and powder coated black, for increased longevity and discreet fitment, and can be used with after market or factory protection plates. The spacers are machined alloy, in black, and supplied complete with new mounting bolts.

Features :

- 100% Brand New

- To corrects the geometry on the front driveshaft and CV’s

- Lowering the front diff by approx. 30mm

- Designed for Lifted 2" - 4" 4WD Model use

Notes :

- Not Including Installation Guide or Manual

- Professional Installation is Recommended

Applications ( Fits For Below Vehicles ) :

*** Please make sure it fit your car before purchase ***

*** Most of the images provided are for illustration purposes only and may not be the actual products.

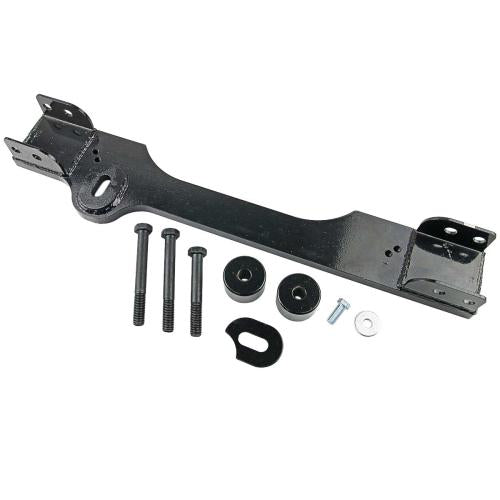

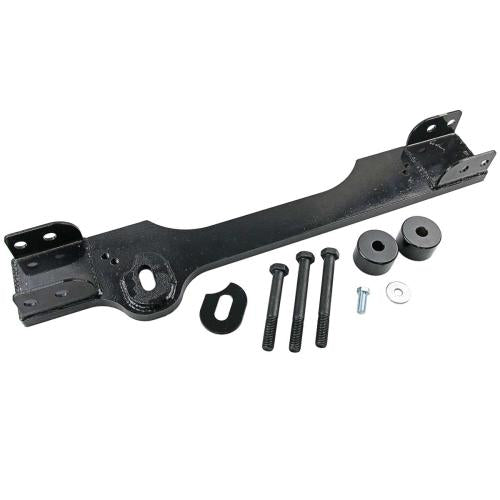

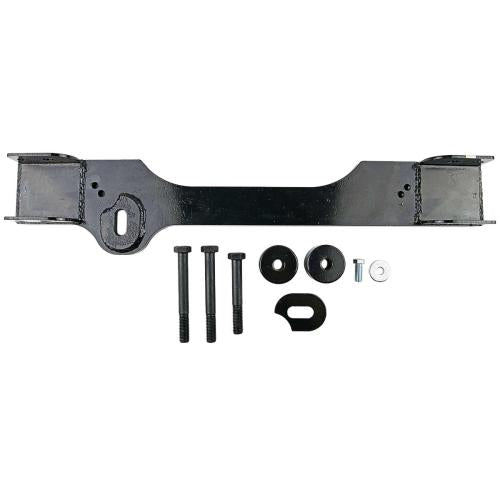

Package Content :

- Diff Drop Crossmember

- Diff Drop Bosses

- Bolt

- Washer

Packing Size : 67 x 16 x 10 cm

Packing Weight : 8 kg

Actual Weight : 8 kg
