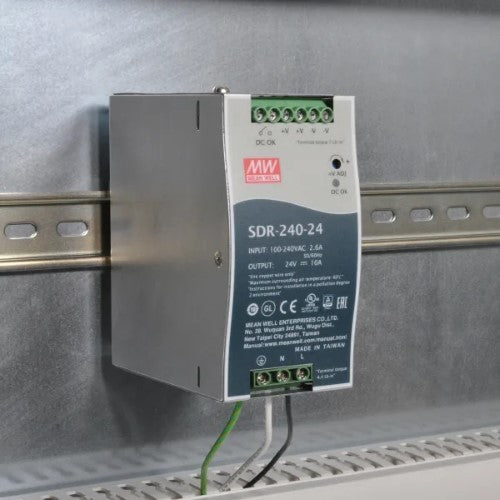

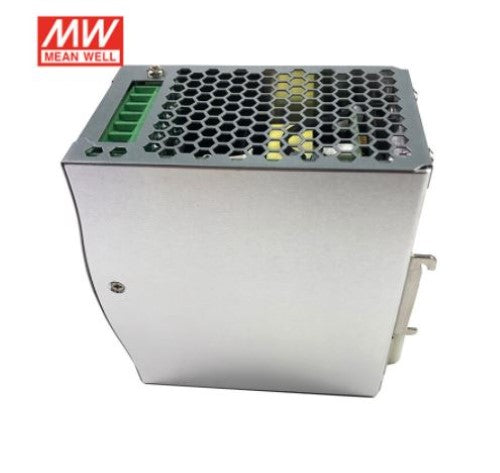

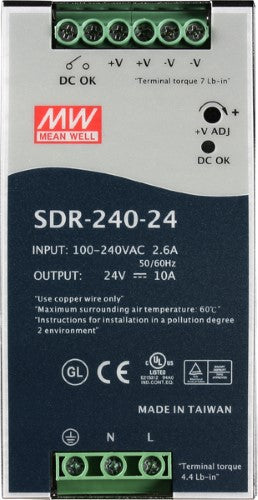

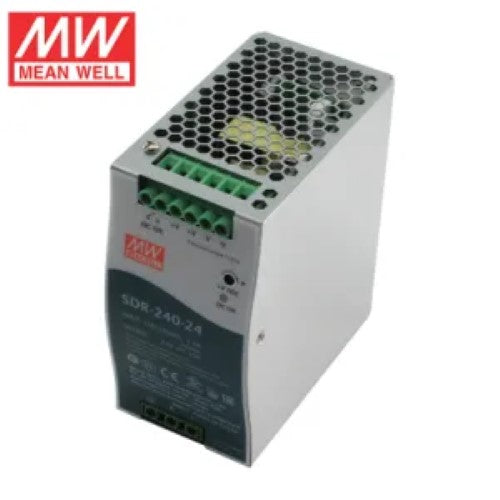

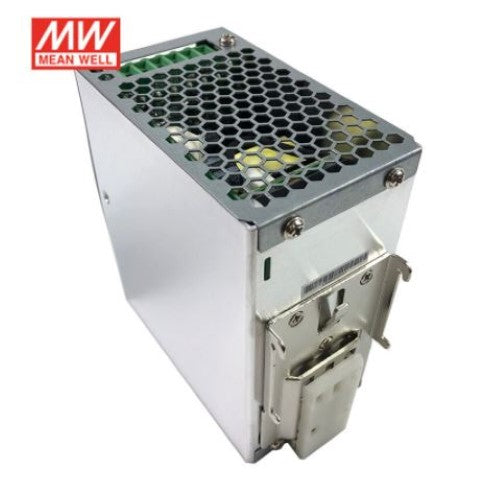

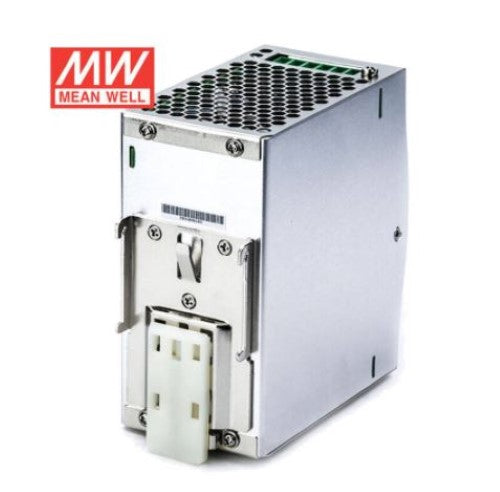

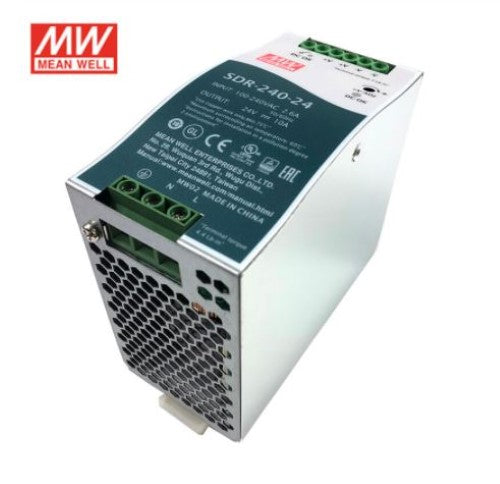

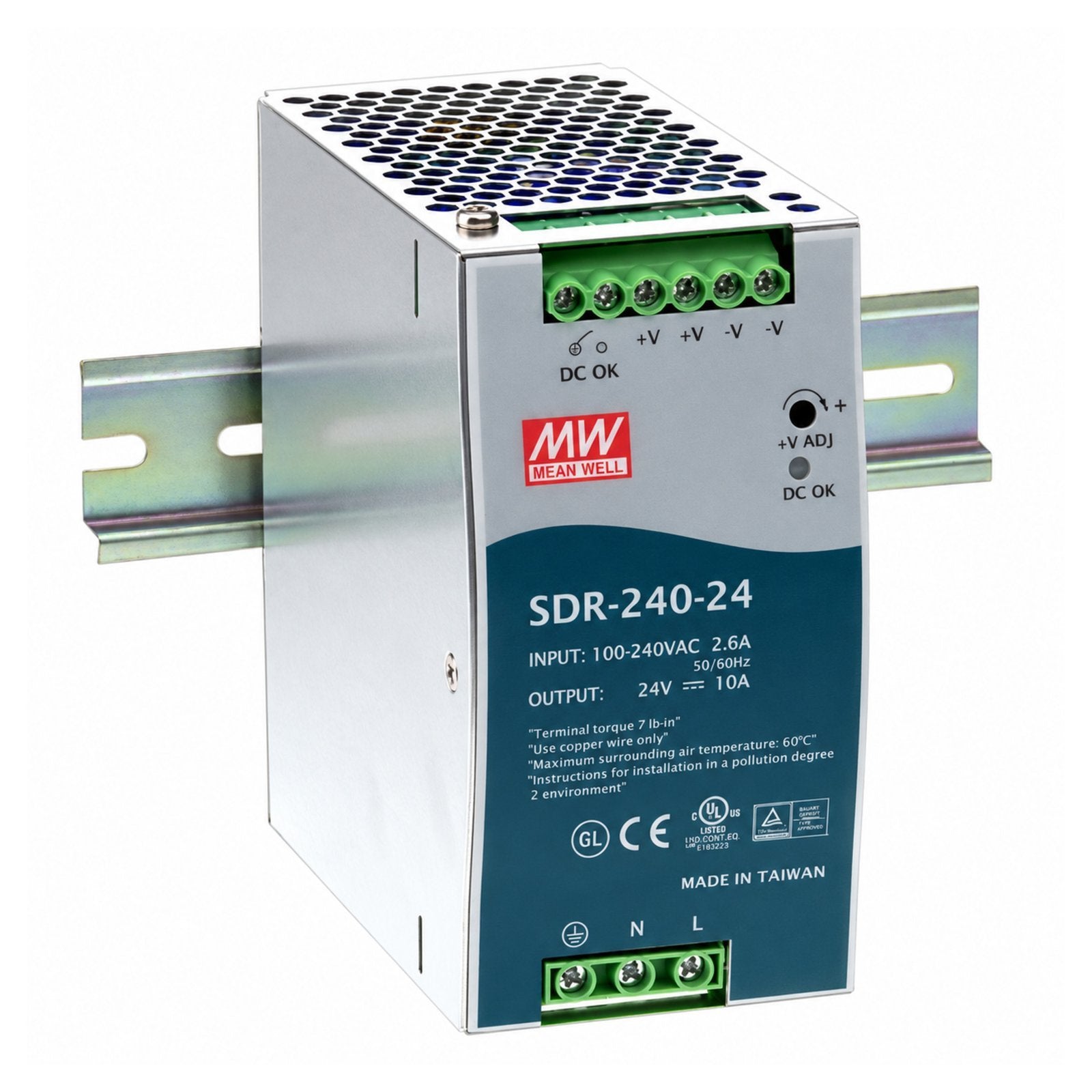

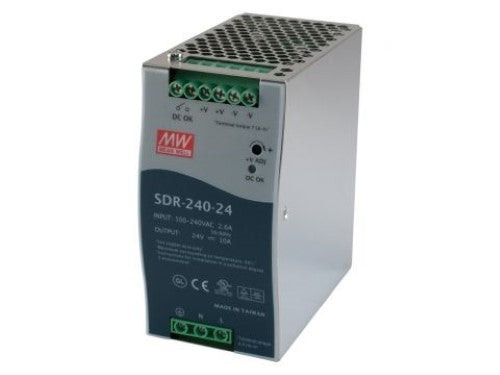

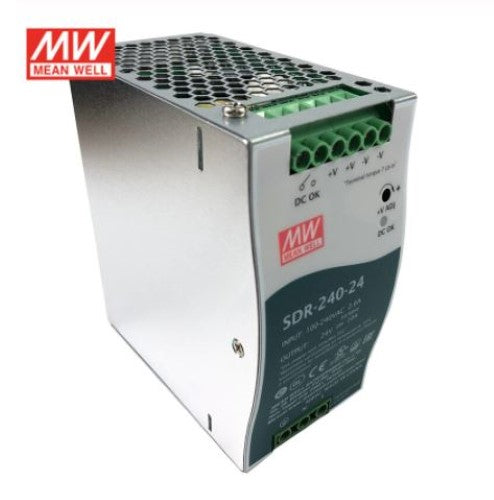

Mean Well SDR-240-24 24V 10 A 240W Slim DIN Rail Power Supply with PFC Function

Mean Well SDR-240-24 24V 10 A 240W Slim DIN Rail Power Supply with PFC Function

Regular price $154.95
3 available

Check vehicle compatibility Select your vehicle to check compatibility.

* Fitment information is a guide only. Please verify your vehicle details before purchase.

Select Vehicle

Hurrify, 3 item(s) left in stock!

Type: Electronics

SKU: MW_SDR-240-24

Mean Well SDR-240-24 24V 10 A 240W Slim DIN Rail Power Supply with PFC Function

$154.95

Description

Product Specifications

Product Attribute	Attribute Value
Configuration	Enclosed
Input Voltage	110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range	100-264 VAC
Mounting Type	DIN Rail Mount
Number of Outputs	1 Output
Output Current	10 A
Output Power	240 W
Output Voltage	24 VDC
Primary Type	AC-DC
Operation	PFC
Type	Industrial

DESCRIPTION

Mean Well's SDR-240 Series is a 240W slim DIN Rail power supply featuring 93.5%+ high efficiency in a slim 63.5mm design. A full input range switcher with built-in PFC function and 360W peak power ability for 3 seconds SDR-240 also has standard functions that include DC OK relay contact, on panel LED indicator, and short-circuit, overload, over voltage, and over temperature protections. The SDR-240 Series also fulfills the requirement of EN61000-3-2 for harmonic current, complies with GL and SEMI F47 for marine and semiconductor-related usage, in addition to UL, CUL, TUV and CE.

APPLICATIONS :

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Features:

Built-in active PFC function (SDR-120/240/480/960), PF >0.93

High efficiency up to 94% with low-power dissipation

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Cooling by free air convection

Working temperature: -30+70 C

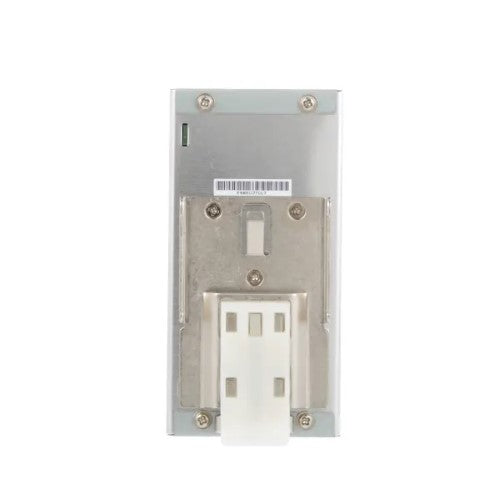

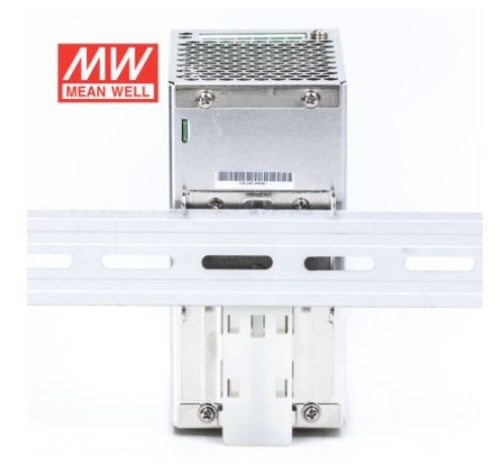

Can be installed on DIN rail TS-35 / 7.5 or 15

Built-in DC OK relay contact (SDR-120/240/480/960)

DC output voltage adjustable

150% peak load capability (130% for SDR-960)

Current sharing up to 3840W (7+1) for SDR-480P

Current sharing up to 3840W (3+1) for SDR-960

Comply with GL (SDR-120/240/480)

Comply with SEMI F47 (SDR-75/120/240/480)
