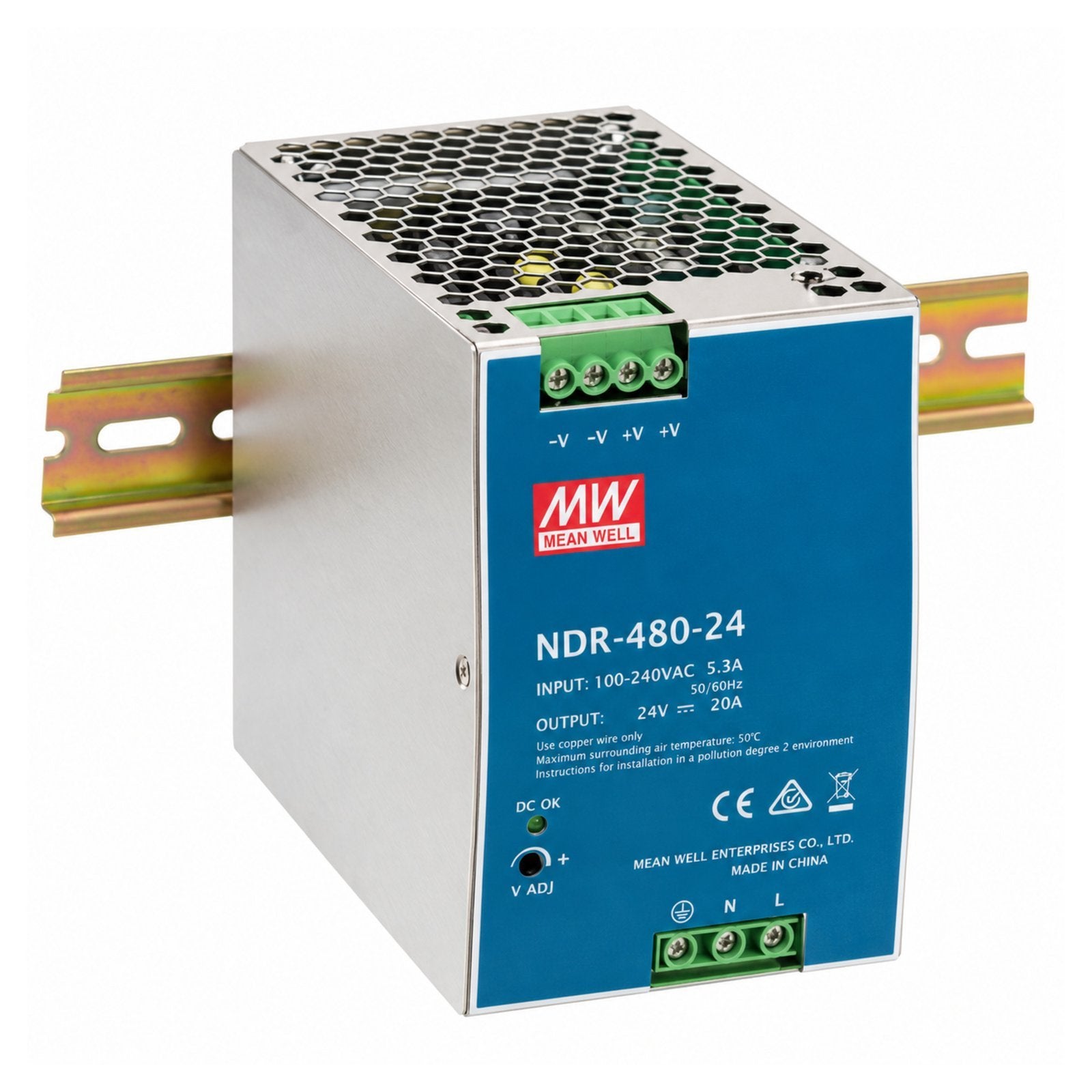

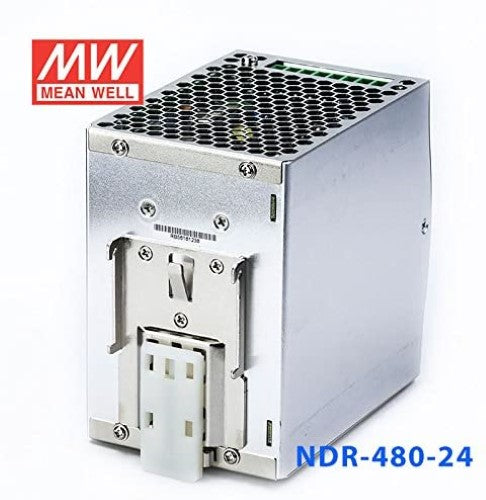

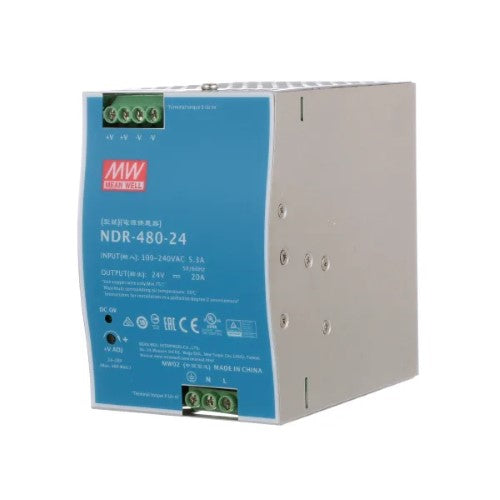

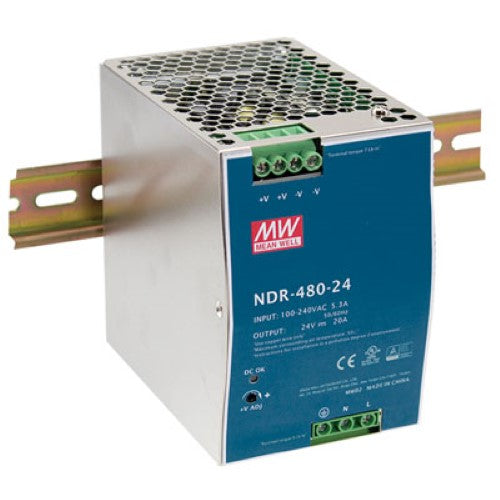

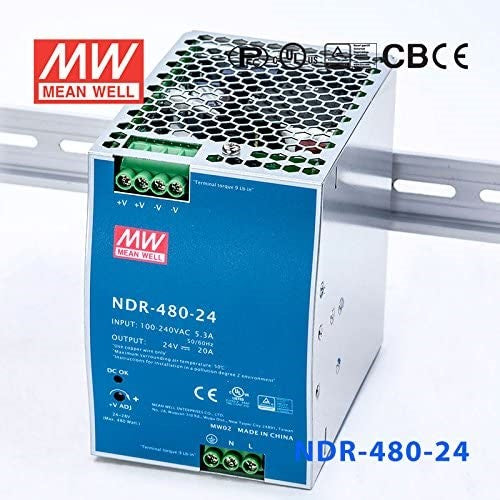

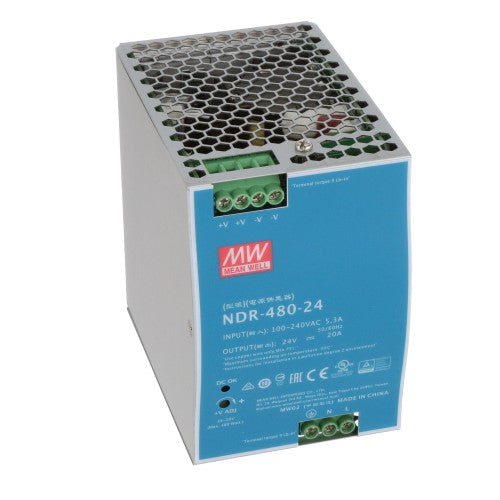

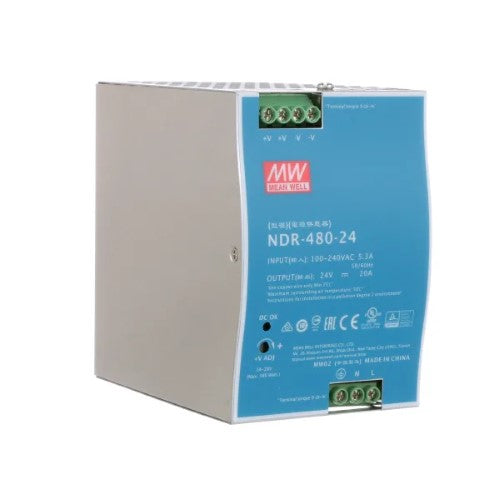

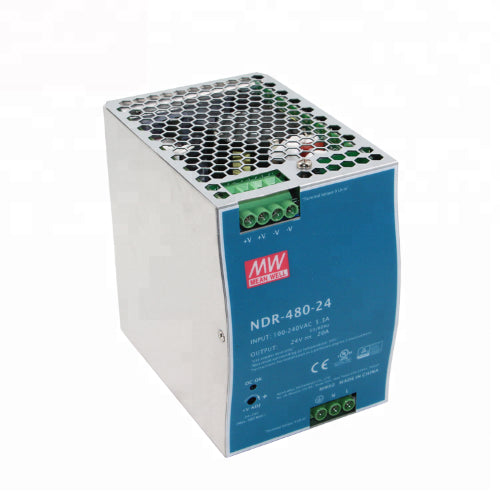

Mean Well MW NDR-480-24 480W 24V 30A Single Output DIN Rail Mount Power Supply

Mean Well MW NDR-480-24 480W 24V 30A Single Output DIN Rail Mount Power Supply

Regular price $218.95
5 available

Check vehicle compatibility Select your vehicle to check compatibility.

* Fitment information is a guide only. Please verify your vehicle details before purchase.

Select Vehicle

Hurrify, 5 item(s) left in stock!

Type: Electronics

SKU: MW_NDR-480-24

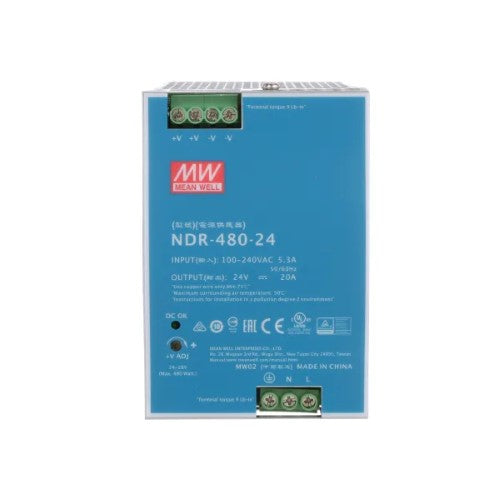

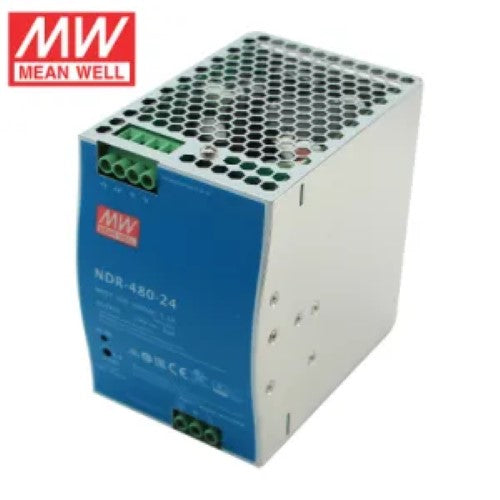

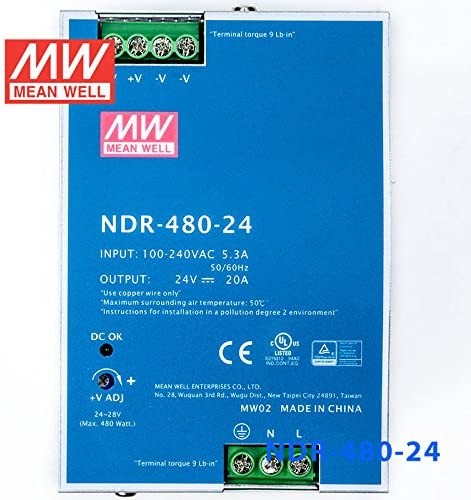

Mean Well MW NDR-480-24 480W 24V 30A Single Output DIN Rail Mount Power Supply

$218.95

Description

Product Specifications

Product Attribute	Attribute Value
Configuration	Enclosed
Input Voltage	110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range	100-264 VAC
Mounting Type	DIN Rail Mount
Number of Outputs	1 Output
Output Current	30 A
Output Power	480 W
Output Voltage	24 VDC
Primary Type	AC-DC
Operation	PFC
Type	Embedded

DESCRIPTION

NDR-480 is one economical slim 480 W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.

NDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20 C and +70 C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1) make NDR-480 a very competetive power supply solution for industrial applications.

APPLICATIONS :

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Features:

Universal AC input / Full range

Built-in active PFC function (NDR-240/480)

High efficiency up to 92.5%

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Cooling by free air convection

Working temperature: -20~+60oC (EDR), -20~+70oC(NDR)

DC output voltage adjustable

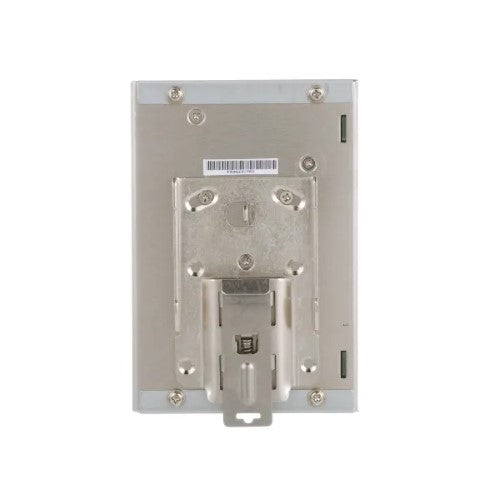

Can be installed on DIN rail TS-35 / 7.5 or 15
