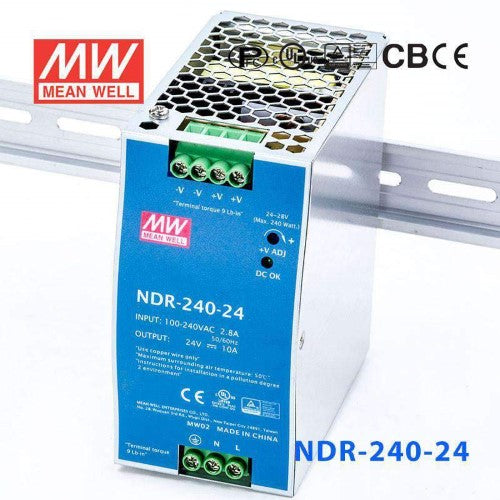

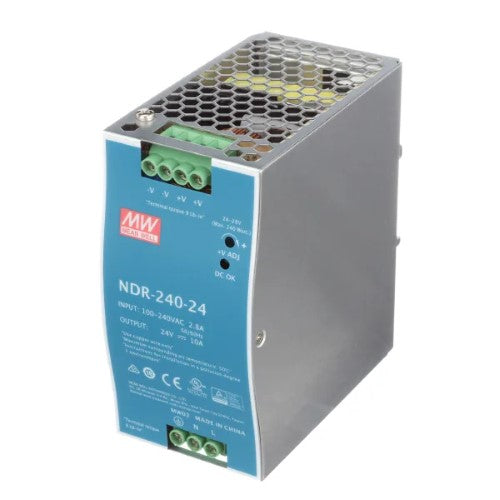

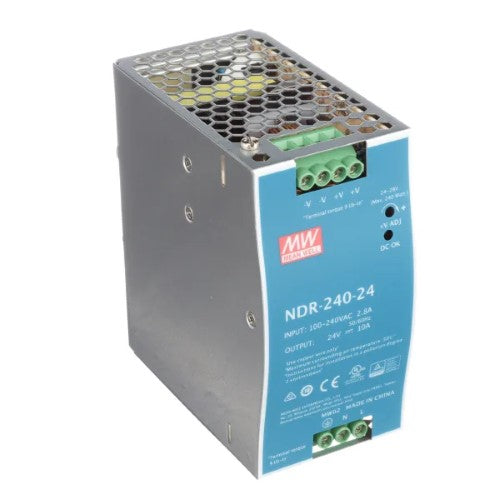

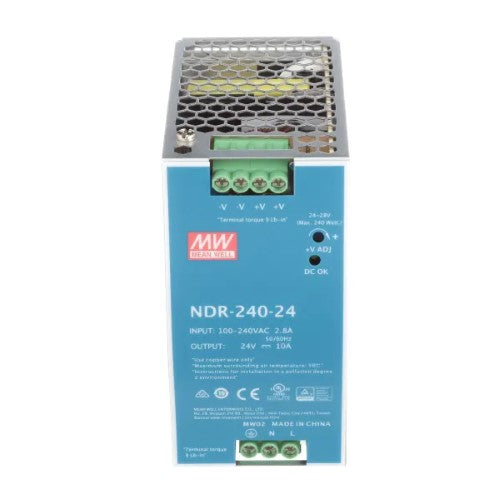

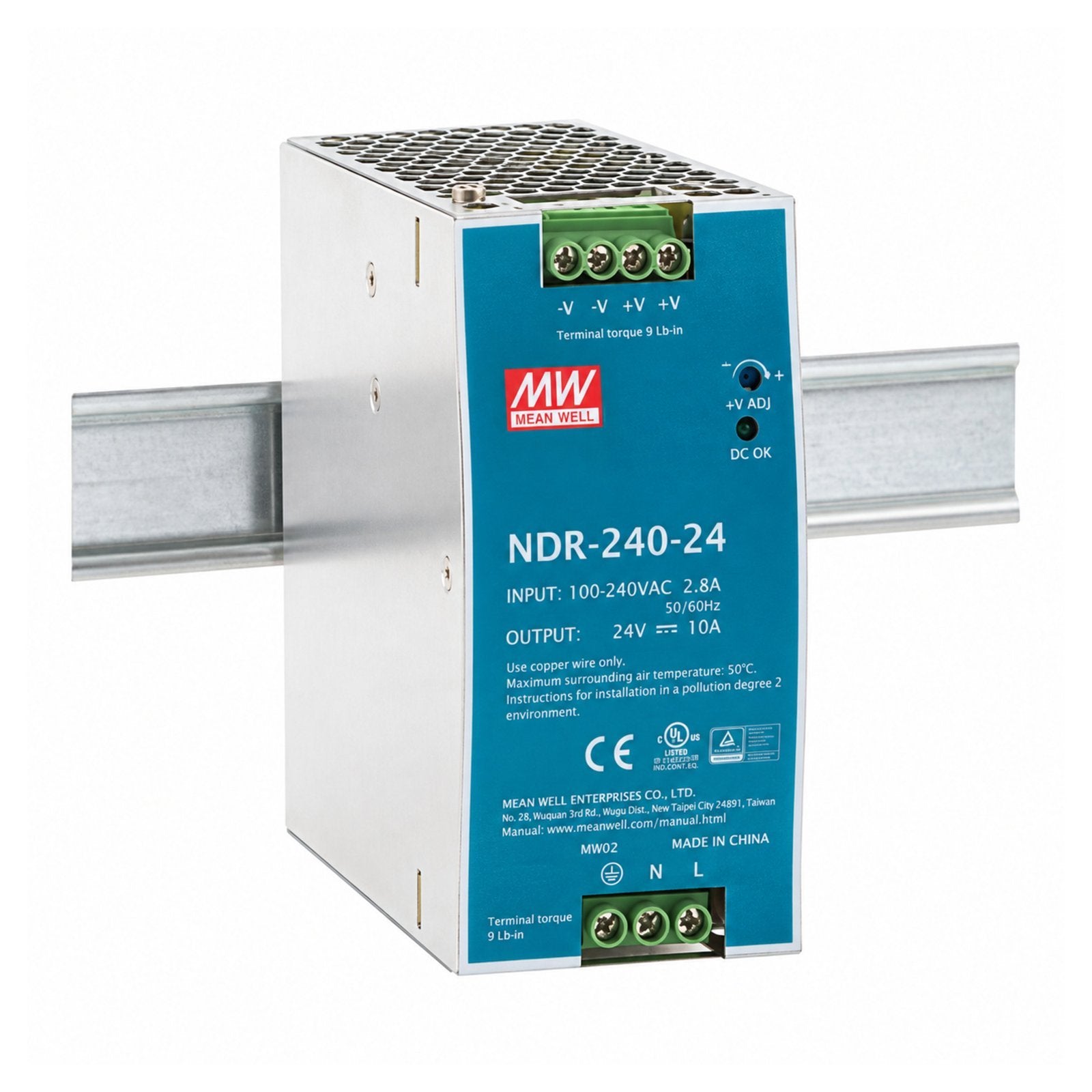

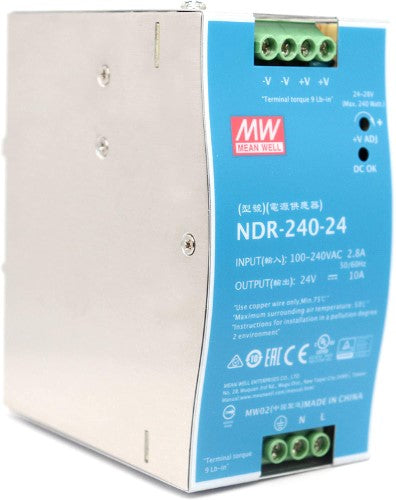

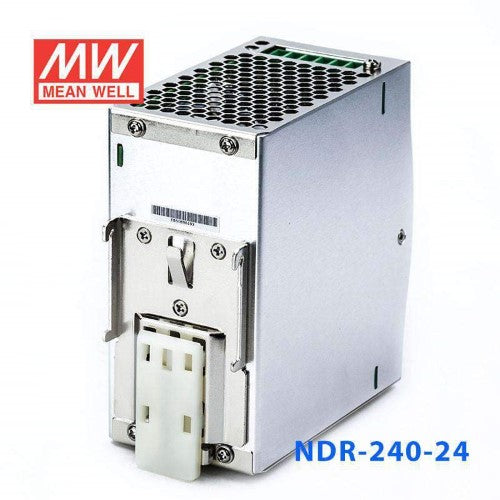

Mean Well MW NDR-240-24 240W 24V 10A Single Output DIN Rail Mount Power Supply

Product Specifications

DESCRIPTION

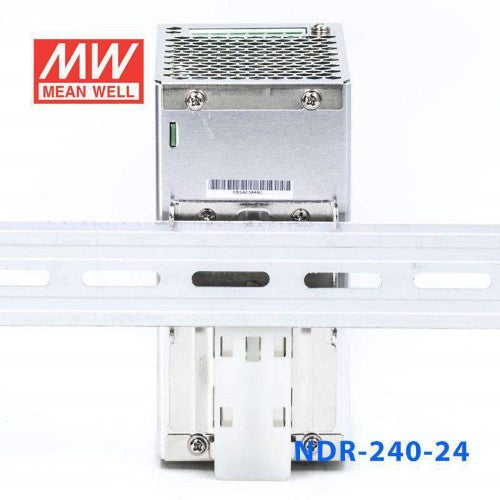

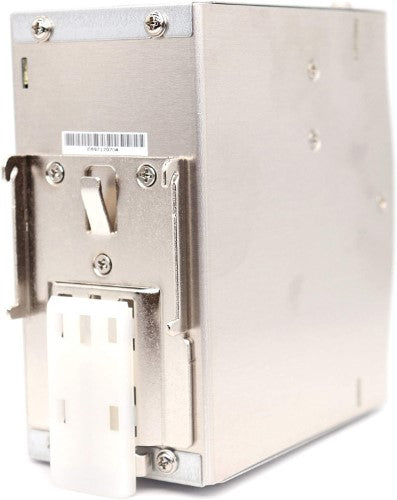

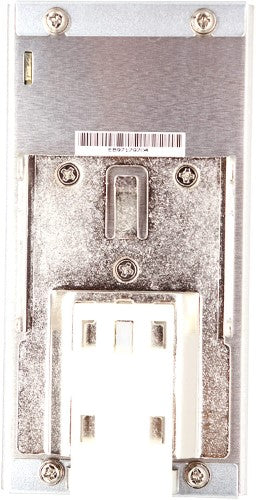

NDR-240 is one economical slim 240 W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.

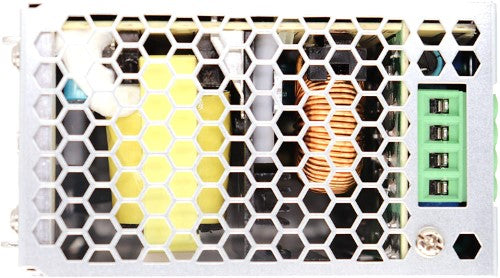

NDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20 C and +70 C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1) make NDR-240 a very competetive power supply solution for industrial applications.

APPLICATIONS :

• Industrial control system
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Features:
