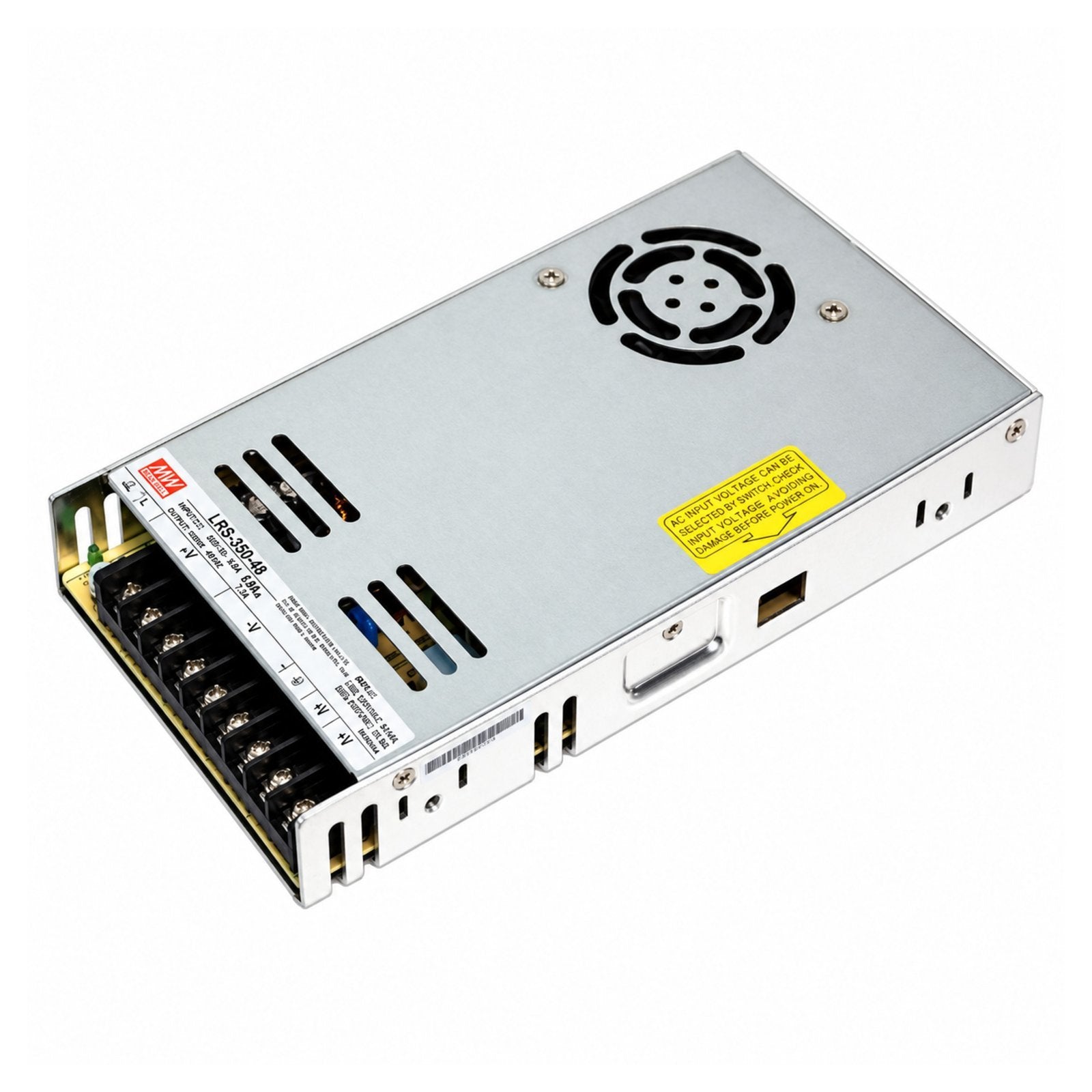

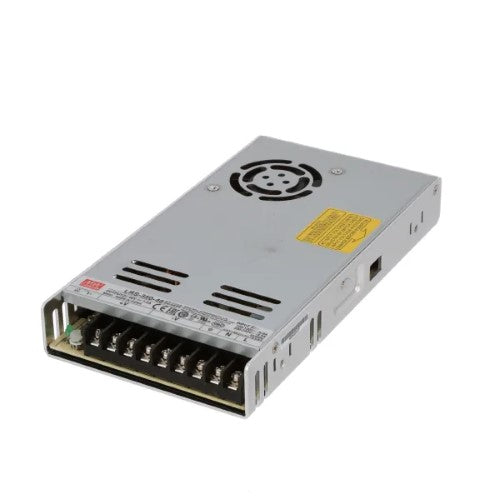

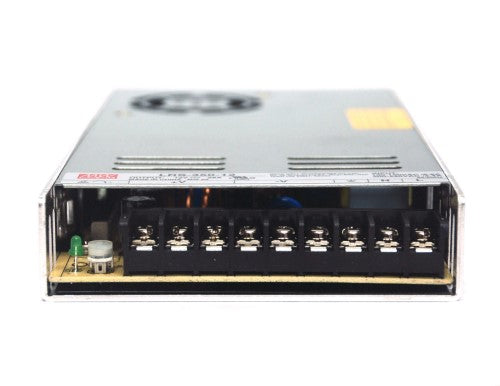

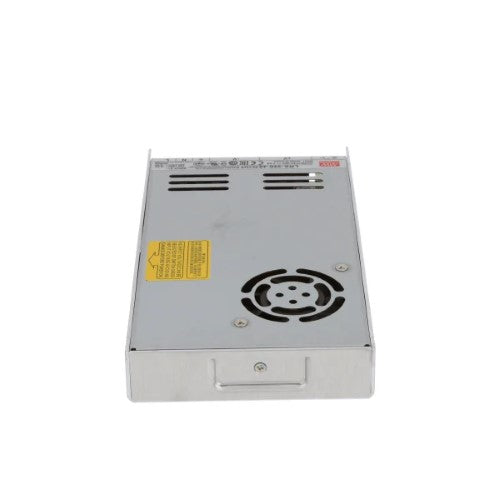

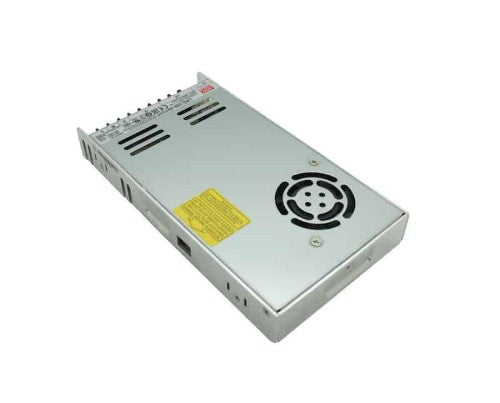

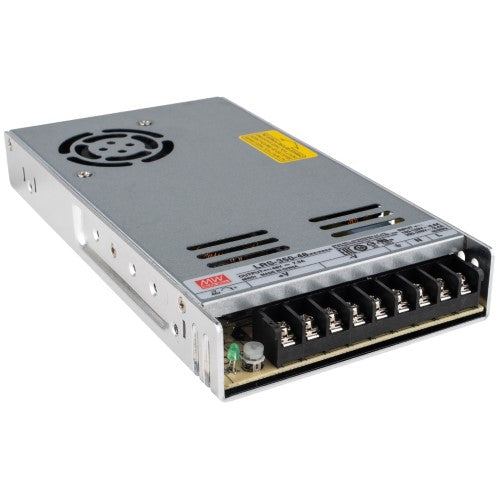

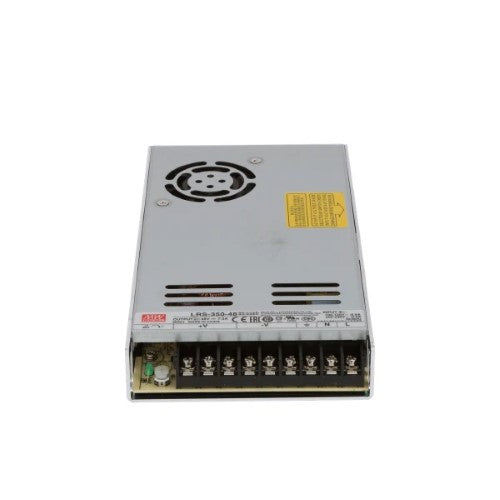

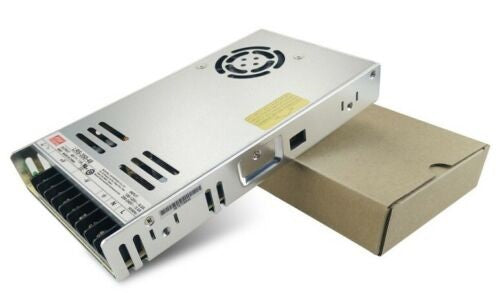

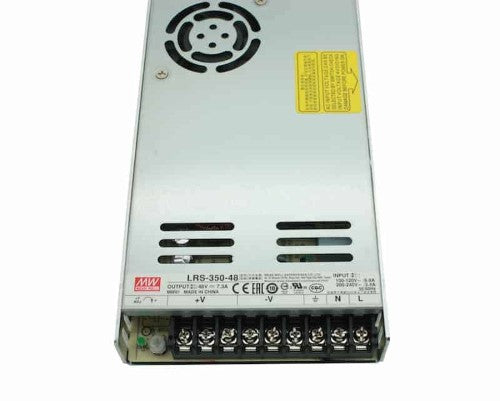

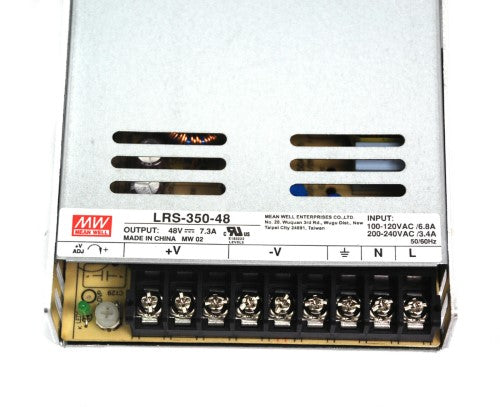

Mean Well MW LRS-350-48 48 VDC 7.5A 350W Regulated Switching Power Supply

$54.95

Description

Product Specifications

Product Attribute	Attribute Value
Configuration	Enclosed
Input Voltage	110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range	100-132/170-264 VAC
Mounting Type	Panel Mount
Number of Outputs	1 Output
Output Current	7.3 A
Output Power	348 W
Output Voltage	48 VDC
Primary Type	AC-DC
Operation	Switching
Type	Embedded

DESCRIPTION

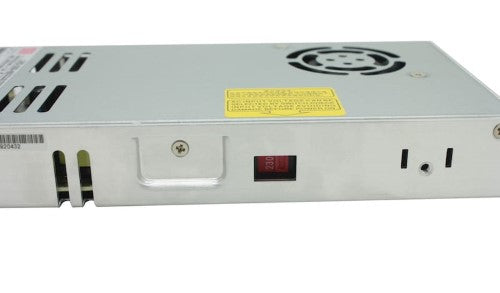

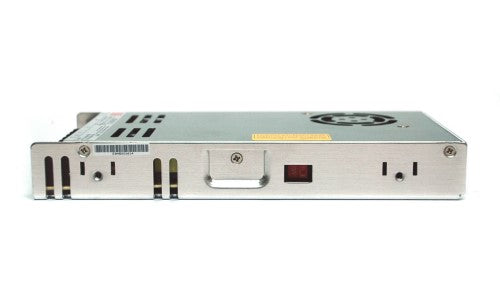

LRS-350 Series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 89 percent, with the built-in long life fan LRS-350 can work under -25 deg.C to 70 deg.C with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high performance-to-price power supply solution for various industrial applications.

APPLICATIONS :

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus

Features:

Universal AC input/Full range

Withstand 300VAC surge input for 5 second

No load power consumption less than 0.3W

Miniature size and 1U low profile

High operation temperature up to 70 deg.C

Short circuit/Overload/Over voltage protections

Cooling by free air convection

Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

100 percent full load burn-in test
