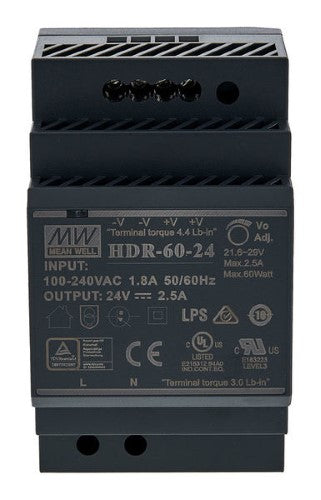

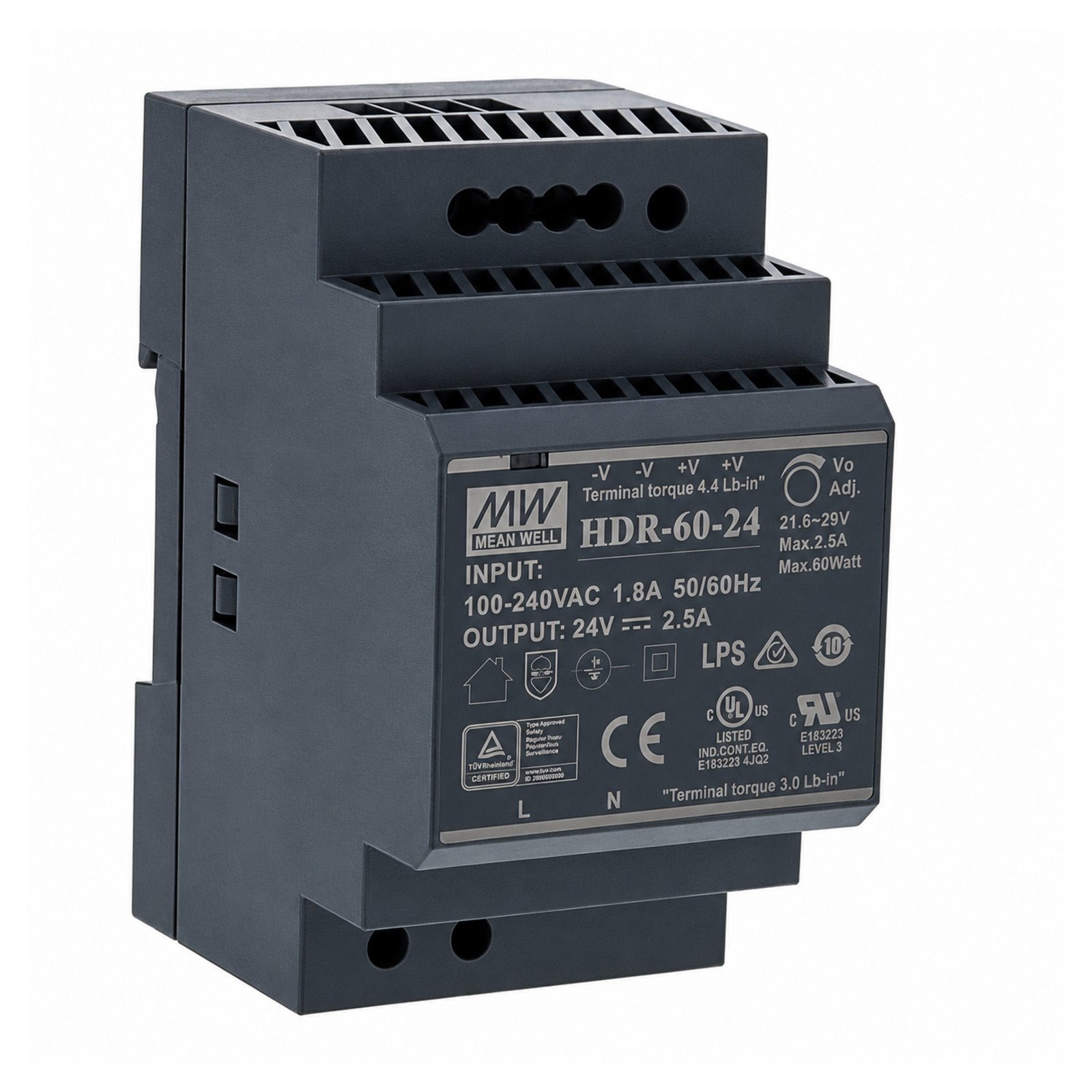

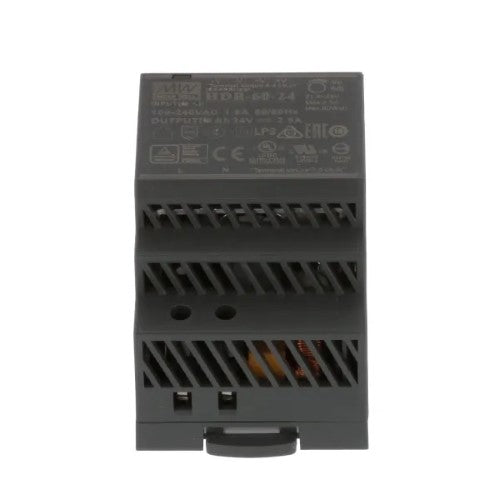

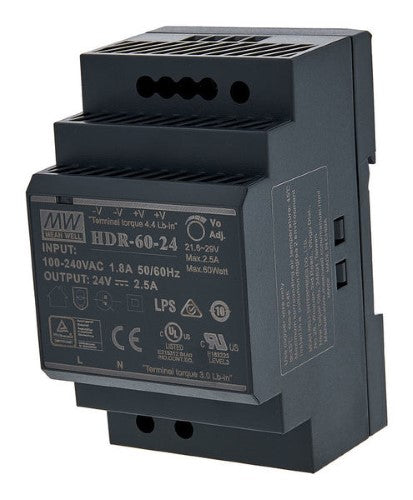

Mean Well MW HDR-60-24 60W 24V 2.5A Single Output Switching Power Supply

Product Specifications

DESCRIPTION

HDR Series Family features step shape plastic housing, accepts 85~264VAC input (277VAC available) and provides complete models (5V/12V/15V/24V/48V). Moreover, HDR family specially adopts the European Union standard DIN EN43880 and slim design that the height are all 90mm and the width are only 1SU~4SU (17.5mm/35mm/52.5mm/70mm) respectively, and further with low no load power consumption (<0.3W), high working efficiency (up to 91%), adjustable DC output voltage, wide working temperature range (-30~+70°C) characteristics. HDR whole family is Class II isolation level, passing LPS (Limited Power Source), conforming to EN61000-3-2 Class A (the norm the European Union regulates for harmonic current), and complying with complete safety regulations (UL60950-1, UL508, and EN61558-2-16). HDR family will become the first choice in building automation, household control system, industrial control system and the electro-mechanical apparatuses due to its supreme features, complete models and safety regulations with the competitive prices!

APPLICATIONS :

• Household control system
• Building automation
• Industrial control system
• Factory automation
• Electro-mechanical apparatus

Features:
