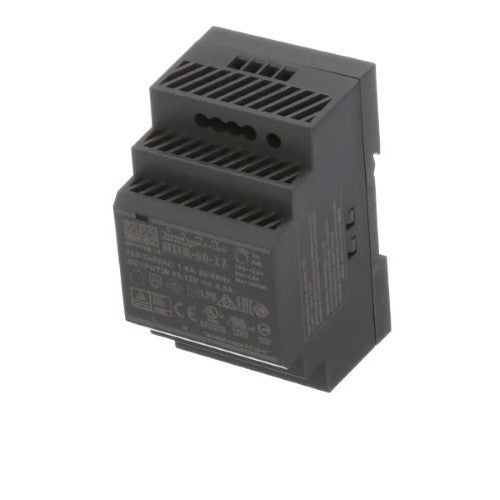

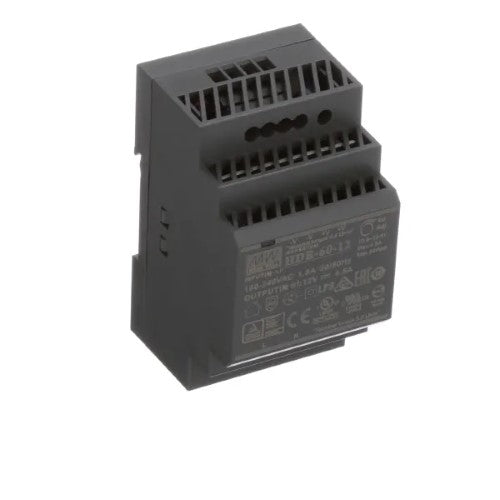

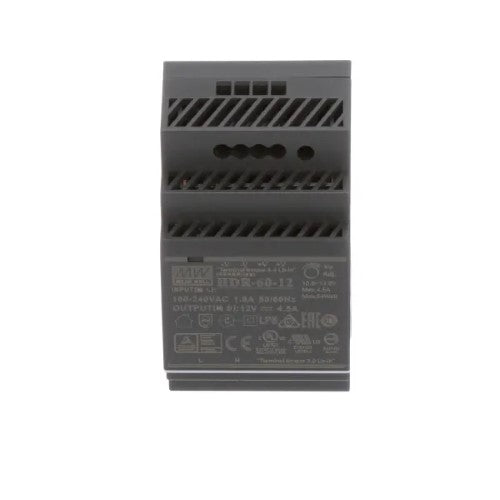

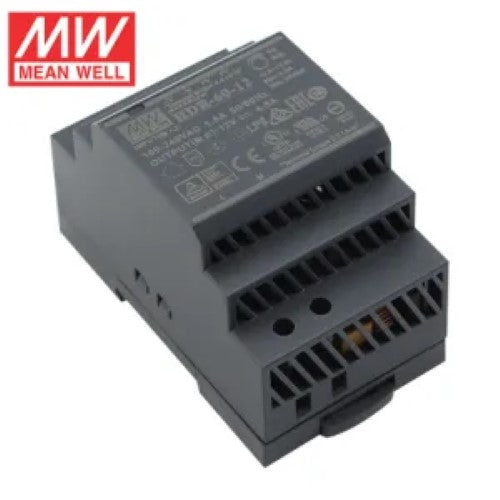

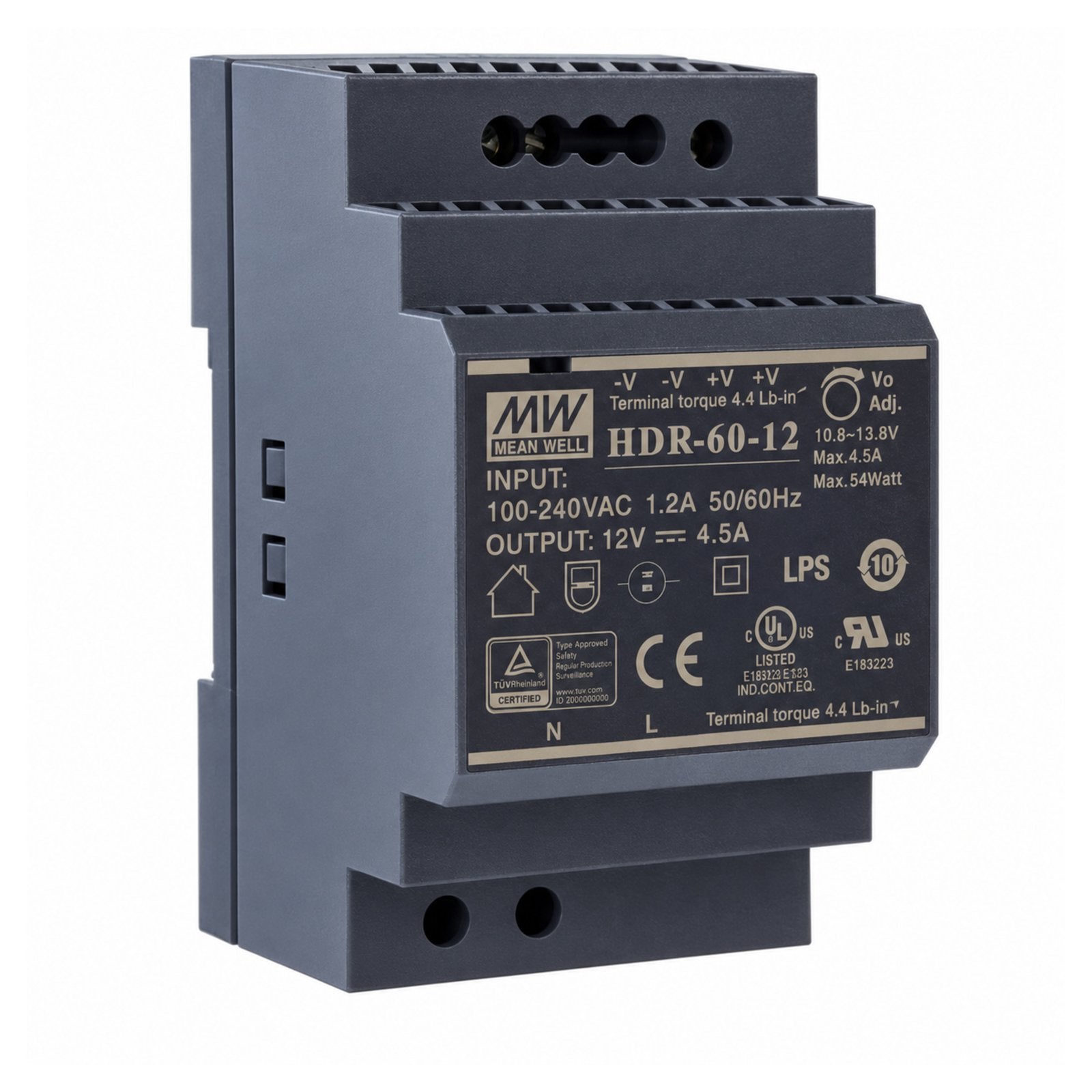

Mean Well MW HDR-60-12 54W 12V 4.5A Single Output Switching Power Supply

Mean Well MW HDR-60-12 54W 12V 4.5A Single Output Switching Power Supply

Regular price $34.95
5 available

Check vehicle compatibility Select your vehicle to check compatibility.

* Fitment information is a guide only. Please verify your vehicle details before purchase.

Select Vehicle

Hurrify, 5 item(s) left in stock!

Type: Electronics

SKU: MW_HDR-60-12

Mean Well MW HDR-60-12 54W 12V 4.5A Single Output Switching Power Supply

$34.95

Description

Product Specifications

Product Attribute	Attribute Value
Configuration	Enclosed
Input Voltage	110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range	100-264 VAC
Mounting Type	DIN Rail Mount
Number of Outputs	1 Output
Output Current	4.5 A
Output Power	54 W
Output Voltage	12 VDC
Primary Type	AC-DC
Operation	PFC
Type	Industrial

DESCRIPTION

HDR Series Family features step shape plastic housing, accepts 85~264VAC input (277VAC available) and provides complete models (5V/12V/15V/24V/48V). Moreover, HDR family specially adopts the European Union standard DIN EN43880 and slim design that the height are all 90mm and the width are only 1SU~4SU (17.5mm/35mm/52.5mm/70mm) respectively, and further with low no load power consumption (<0.3W), high working efficiency (up to 91%), adjustable DC output voltage, wide working temperature range (-30~+70°C) characteristics. HDR whole family is Class II isolation level, passing LPS (Limited Power Source), conforming to EN61000-3-2 Class A (the norm the European Union regulates for harmonic current), and complying with complete safety regulations (UL60950-1, UL508, and EN61558-2-16). HDR family will become the first choice in building automation, household control system, industrial control system and the electro-mechanical apparatuses due to its supreme features, complete models and safety regulations with the competitive prices!

APPLICATIONS :

Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus

Features:

85~264VAC wide input range (277VAC available)

Isolation class II

Pass LPS (Limited Power Source)

High efficiency up to 91%

No load power consumption <0.3W

DC output voltage adjustable (±10%)

Working temperature:-30~+70°C (fanless design)

LED indicator for power on

Protections: Short circuit / Overload / Over voltage

Comply with EN61000-3-2 Class A, the norm EU regulates for harmonic current

Approvals: UL508/UL60950-1/TUV EN61558-2-16/CB/CE

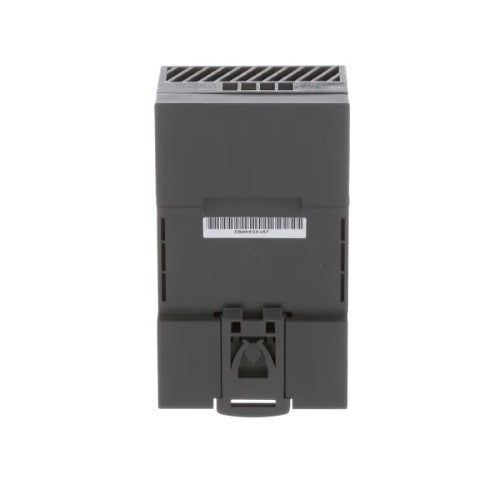

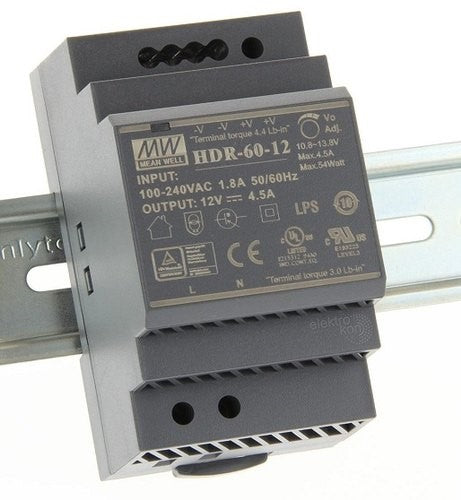

Can be installed on DIN rail TS-35/7.5 or TS-35/15

Ultra slim dimension (W x H x D)-15W: 17.5 x 90 x 54.5 mm, 30W: 35 x 90 x 54.5 mm, 60W: 52.5 x 90 x 54.5 mm
