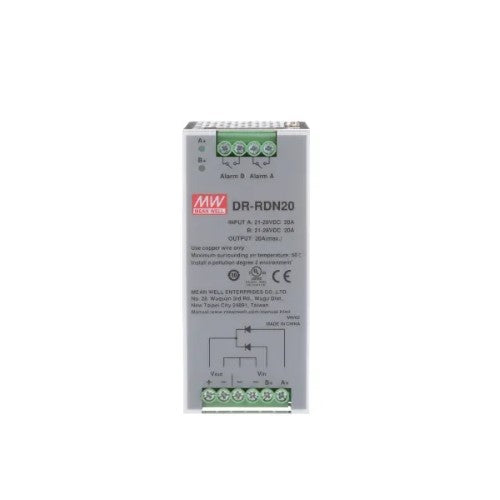

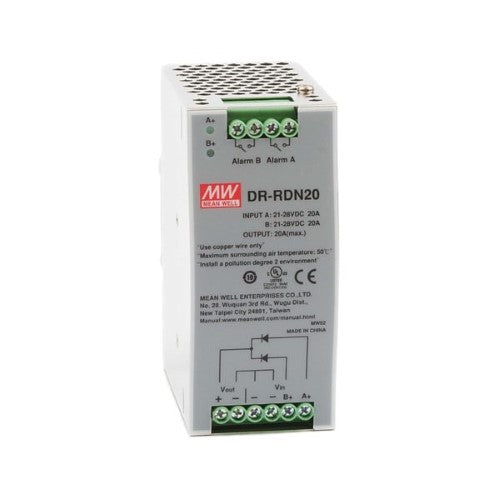

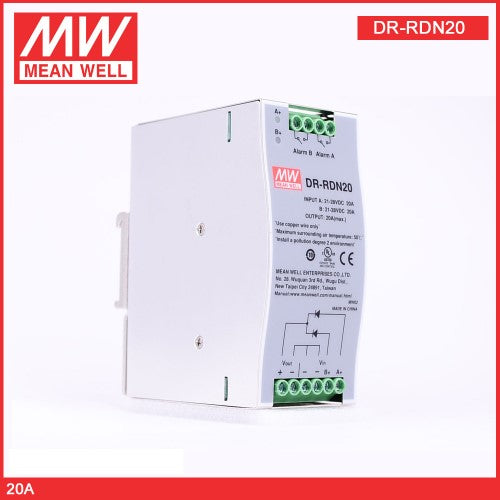

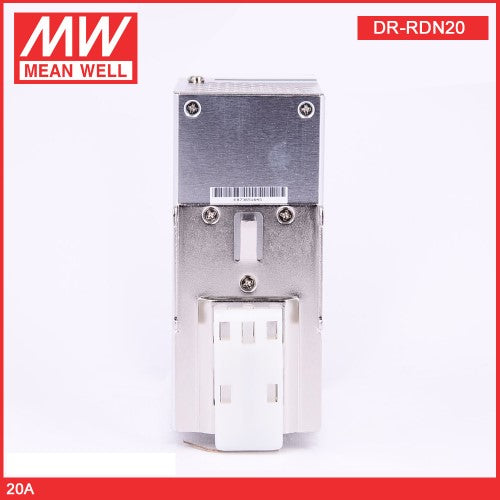

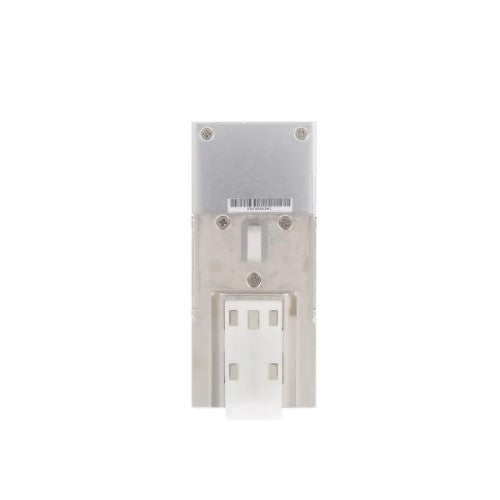

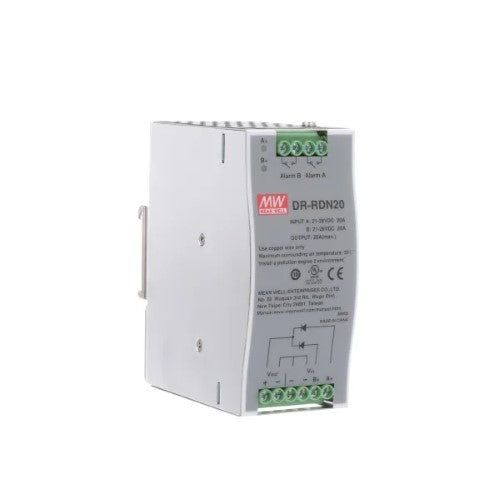

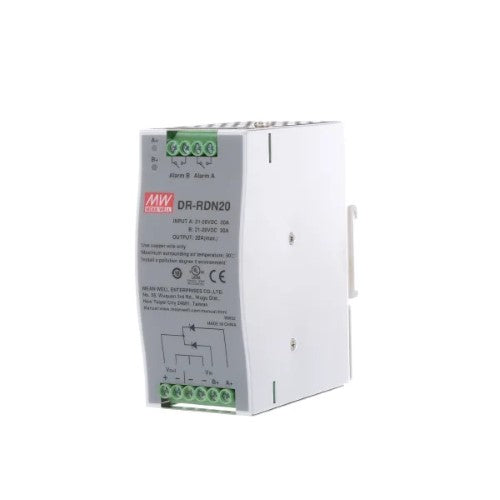

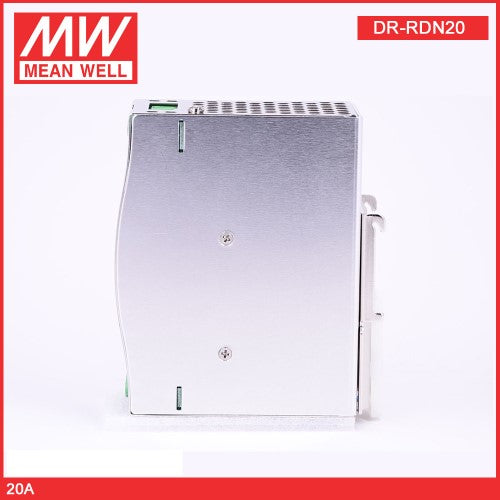

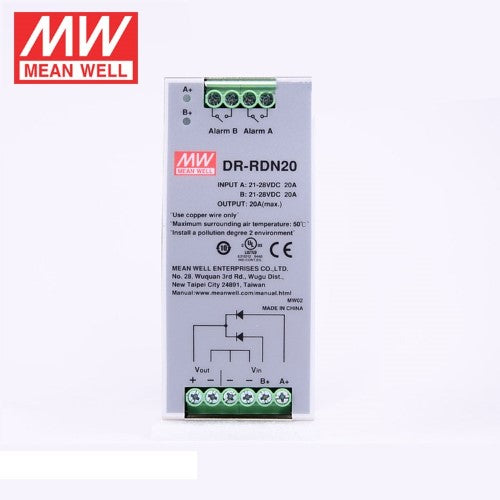

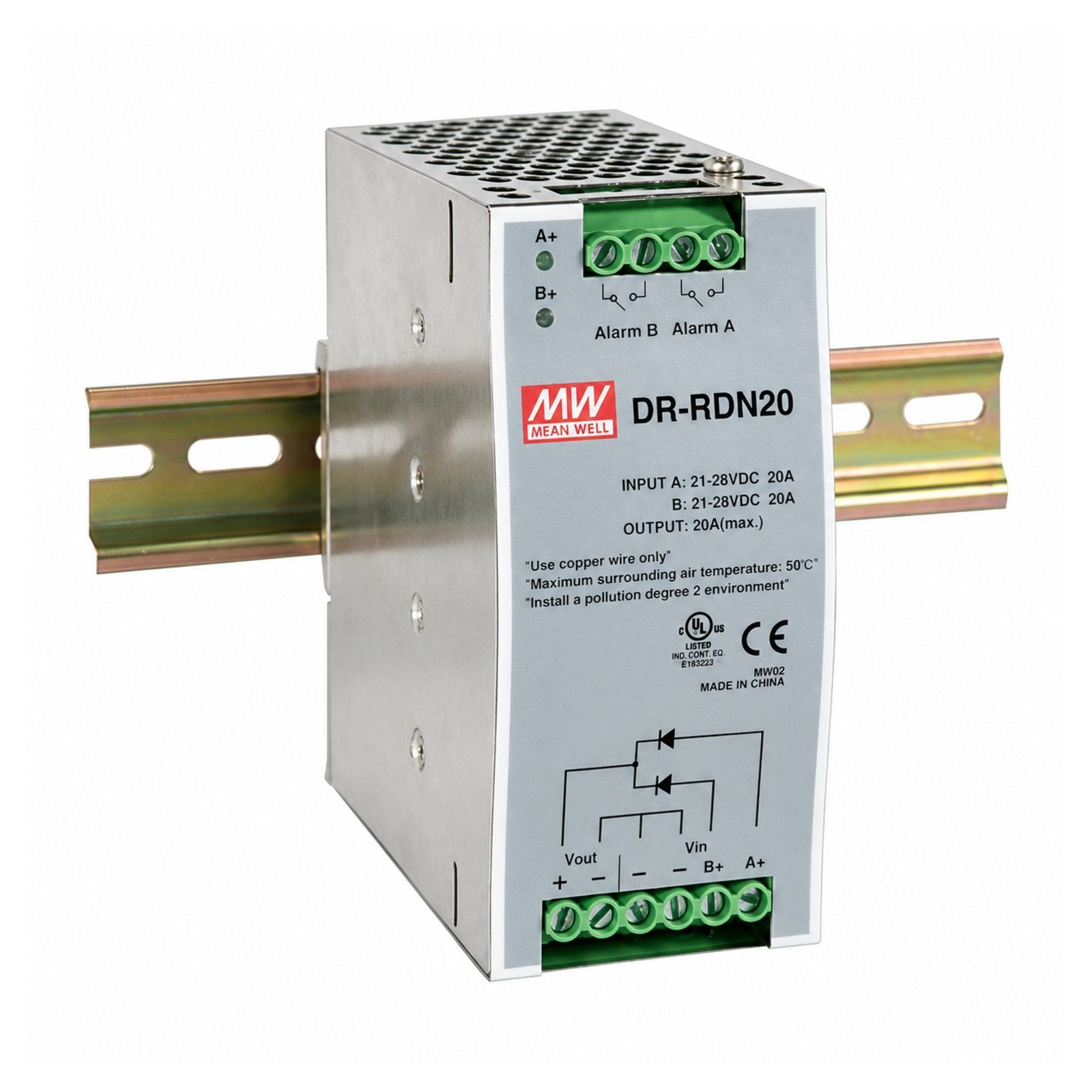

Mean Well MW DR-RDN20 24V 20A DIN Rail Redendant Module

Specification :

Module Type : redundancy

Output voltage : 24V DC, 21...28V DC

Output current : 20A

Supply voltage : 21 - 28V DC

Operating temperature : 40 - 70 C

DESCRIPTION

20A redundancy (decoupling) module for 24Vdc power system. Containing 2 sets of 20A Or-ing diodes with wonderful heat dissipation deployment, DR-RDN20 gives you a new option for safe connection of 1+1 redundant set-up. Not only perfectly decoupling power sources from each other but also from the load, DR-RDN-20 also provides users monitoring signals for both input channels through the built-in relays. Since there's no switching components inside the module, DR-RDN-20 will not generate additional EMI issues and should provide you a worry-free application platform.

APPLICATIONS :

• Building automation
• Security
• Datacommunications
• IT
• Control Panels
