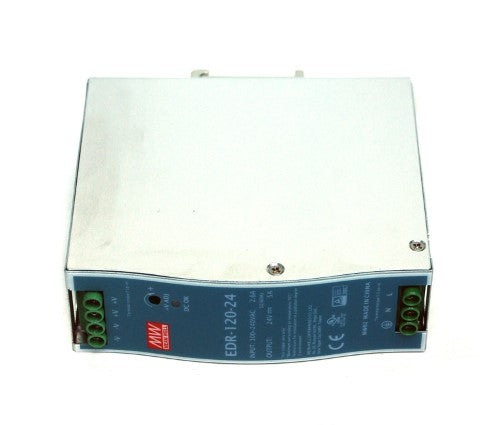

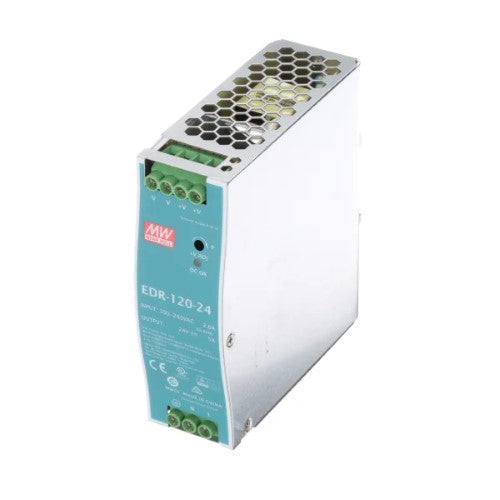

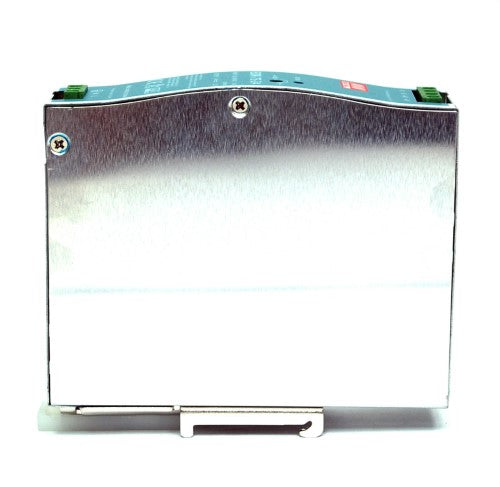

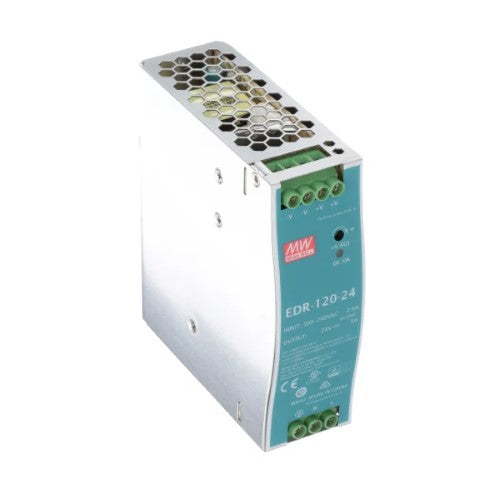

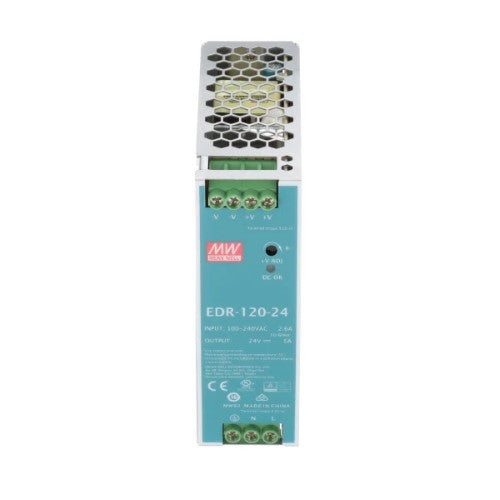

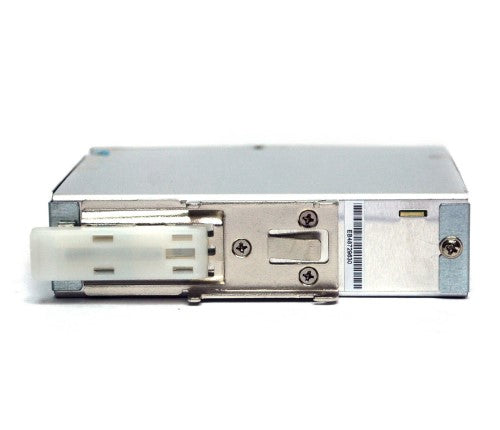

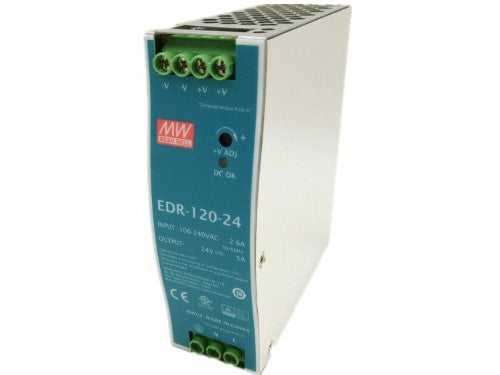

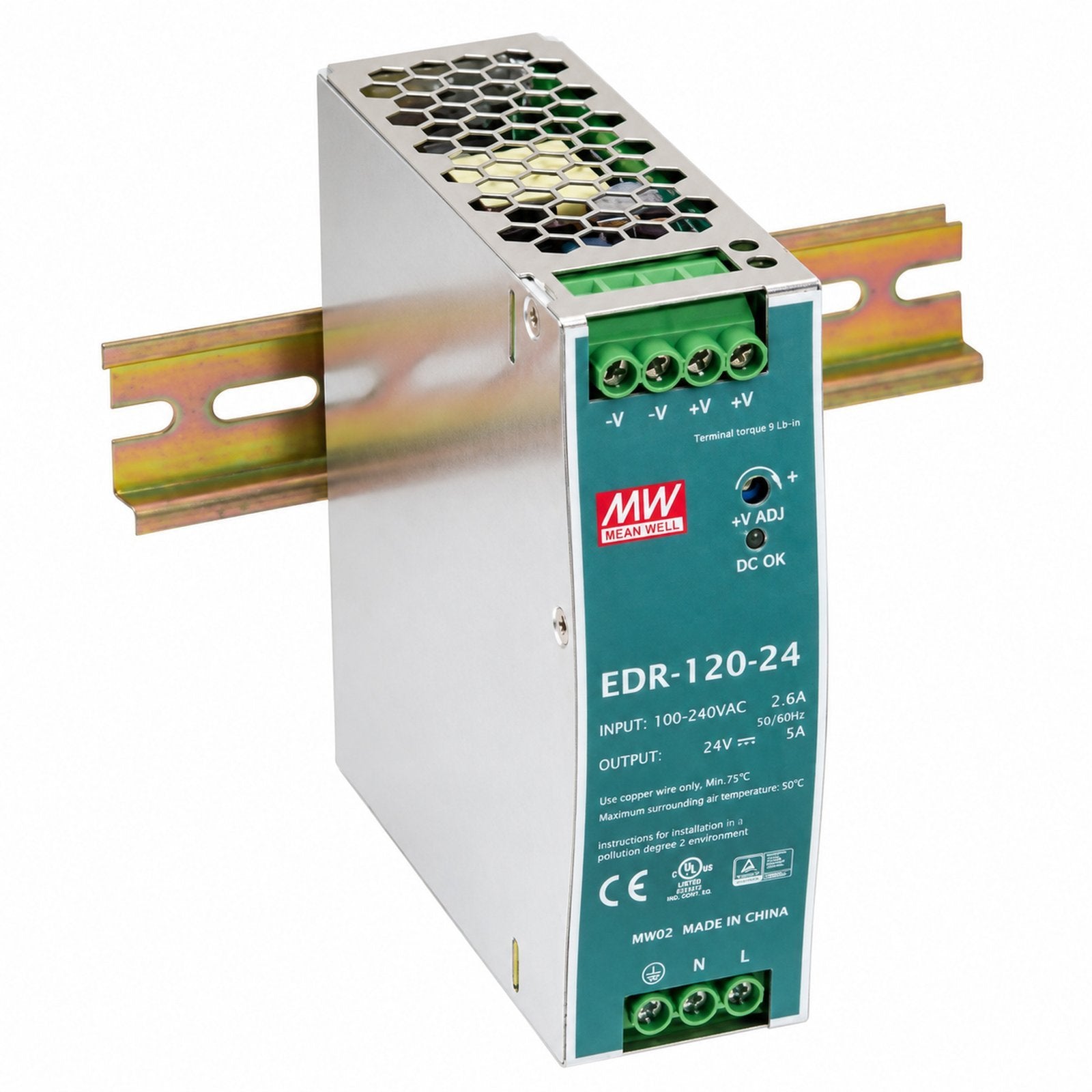

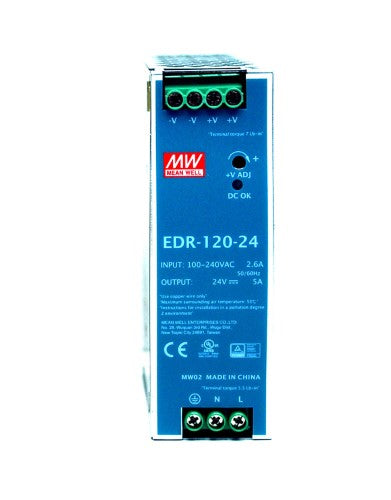

MEAN WELL EDR-120-24 Single Output DIN Rail Power Supply 24V 5Amp 120W

Product Specifications

DESCRIPTION

EDR-120-24 is a 24VDC 5A 120W economical slim line DIN rail power supply that is able to be installed on TS-35/7.5 or TS-35/15 DIN rails. They are the ideal power supply models for cabinet installation where there are commonly issues with a limited width. This DIN rail power supply is designed without a built-in fan and can achieve 85.5% efficiency whilst operating at ambient temperatures of -20 C and 60 C. Other standard features of EDR-120-24 include 90VAC to 264VAC AC input, short circuit, over load, over voltage and over temperature protections and front panel DC voltage adjustment.

APPLICATIONS :

• Industrial control systems
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Features:

• Universal 90-264V AC Input
• Slimline metal housing design
• Short circuit, over load, over voltage and over temperature protections
• Cooling by free air convection
• Working temperature -20 C and 60 C
• Working efficiency up to 88.5%
• Can be installed on DIN rail TS-35/7.5 or 15
• EN55022 Class A EMI Level
• UL 508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
