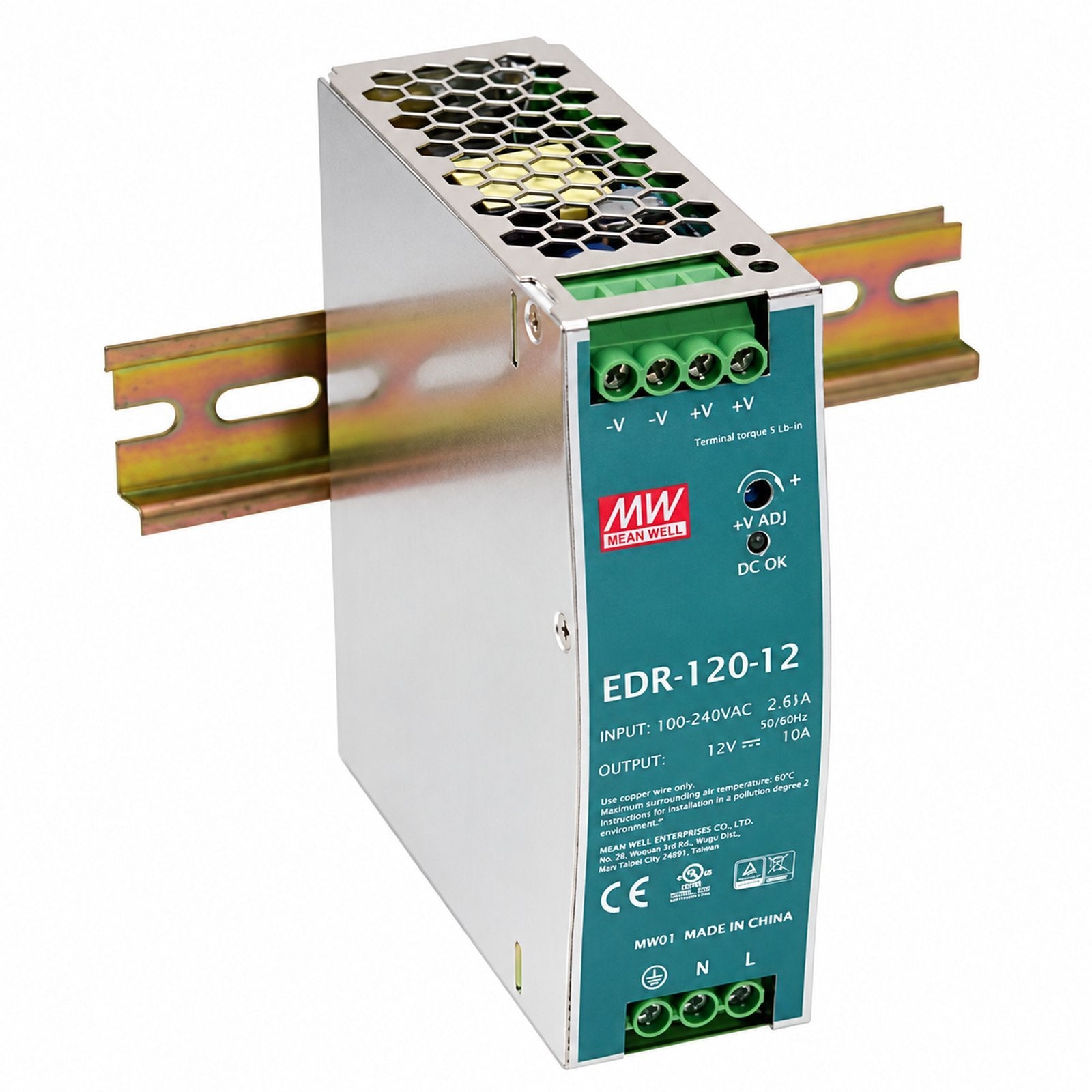

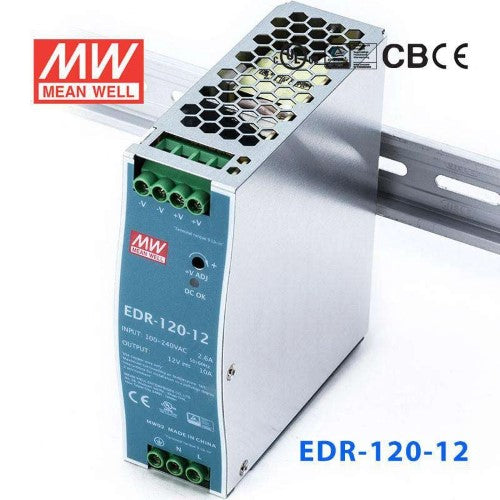

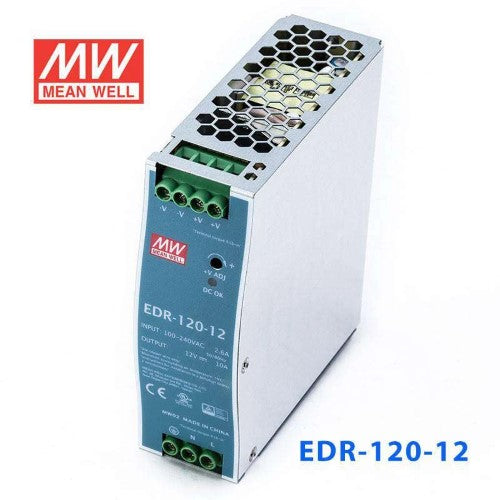

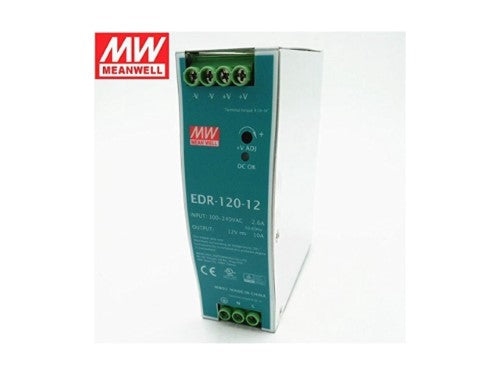

MEAN WELL EDR-120-12 Single Output DIN Rail Power Supply 12V 10 Amp 120W

MEAN WELL EDR-120-12 Single Output DIN Rail Power Supply 12V 10 Amp 120W

Regular price $70.95
5 available

Check vehicle compatibility Select your vehicle to check compatibility.

* Fitment information is a guide only. Please verify your vehicle details before purchase.

Select Vehicle

Hurrify, 5 item(s) left in stock!

Type: Electronics

SKU: MW_EDR-120-12

MEAN WELL EDR-120-12 Single Output DIN Rail Power Supply 12V 10 Amp 120W

$70.95

Description

Product Specifications

Product Attribute	Attribute Value
Configuration	Enclosed
Input Voltage	100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range	90-264 VAC
Mounting Type	DIN Rail Mount
Number of Outputs	1 Output
Output Current	10 A
Output Power	120 W
Output Voltage	12 VDC
Primary Type	AC-DC
Series	EDR Series
Type	Industrial

DESCRIPTION

EDR-120-12 is a 12VDC 10A 120W economical slim line DIN rail power supply that is able to be installed on TS-35/7.5 or TS-35/15 DIN rails. They are the ideal power supply models for cabinet installation where there are commonly issues with a limited width. This DIN rail power supply is designed without a built-in fan and can achieve 85.5% efficiency whilst operating at ambient temperatures of -20 C and 60 C. Other standard features of EDR-120-12 include 90VAC to 264VAC AC input, short circuit, over load, over voltage and over temperature protections and front panel DC voltage adjustment.

APPLICATIONS :

Industrial control systems
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Features:

Universal 90-264V AC Input

Slimline metal housing design

Short circuit, over load, over voltage and over temperature protections

Cooling by free air convection

Working temperature -20 C and 60 C

Working efficiency up to 88.5%

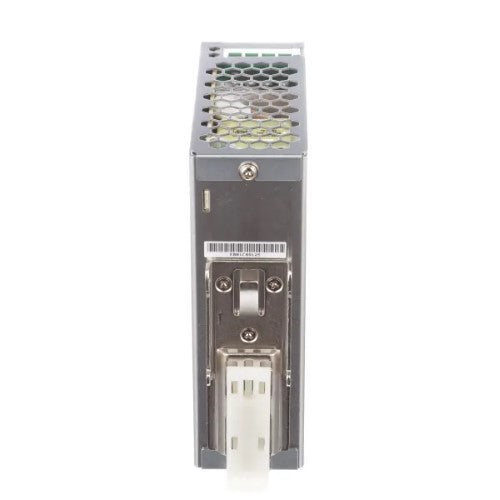

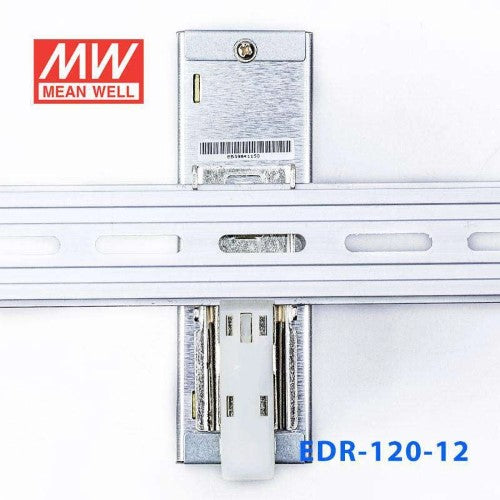

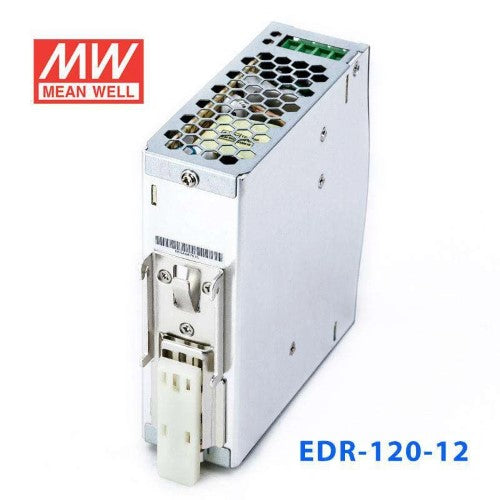

Can be installed on DIN rail TS-35/7.5 or 15

EN55022 Class A EMI Level

UL 508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level
