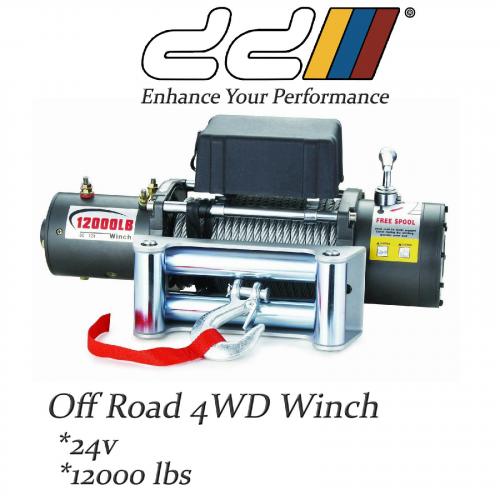

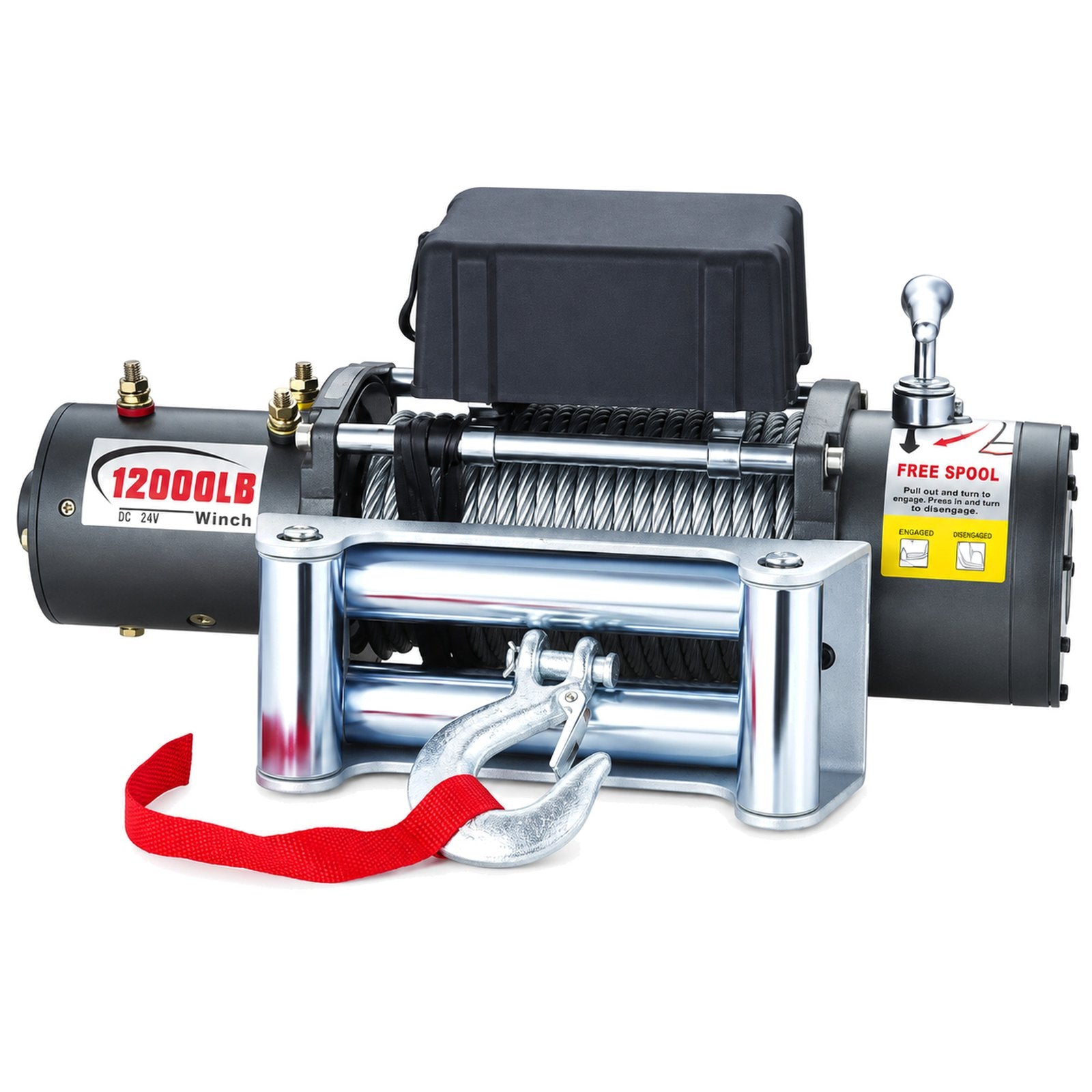

DD 12000LB (24V) Recovery Electric Winch Wireless Remote Trailer 4WD SUV Jeep

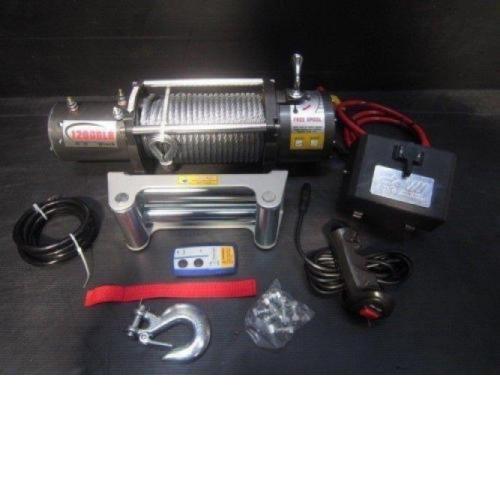

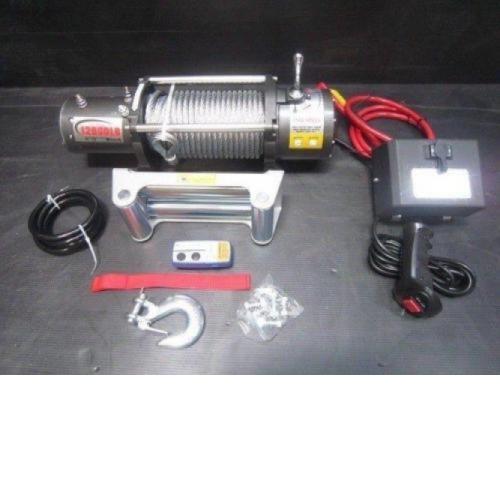

Package Includes:

• Item Description:
  • 1 x 12000lb 24V Winch

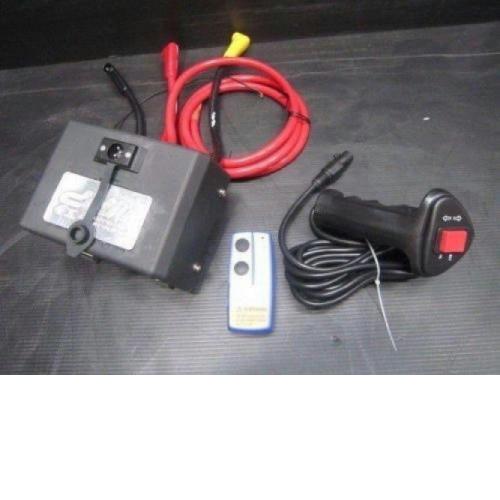

  • 1 x Solenoid Box Assembly

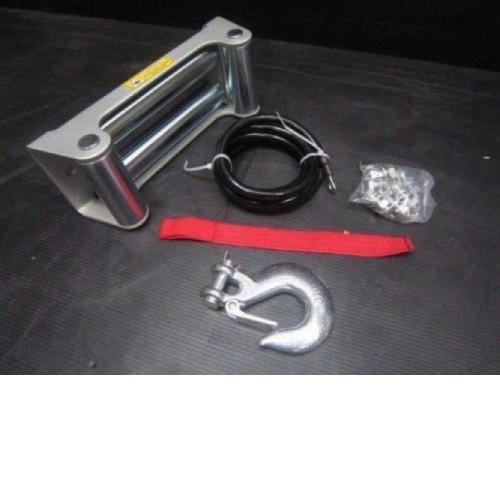

  • 1 x Roller Fairlead
  • 1 x Remote Switch with 12ft Cable

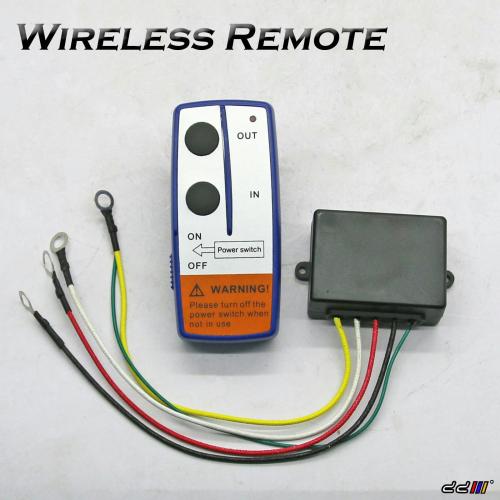

  • 1 x Wireless Remote Control
  • 1 x Hook
  • 1 x Safety Pull Strap
  • Some Fixing Accessories
  • 1 x Users Manual
  • Mounting plate is not included

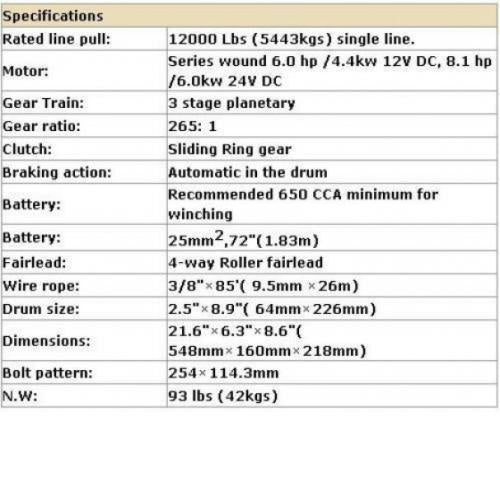

• Item Specifications:
  • Rated line pull: 12000 Lbs (5443kgs) single line.
  • Motor: Series wound
  • 1hp /6.0kw,24V DC
  • Gear Train: 3 stage planetary
  • Gear ratio: 265: 1
  • Clutch: Sliding Ring gear
  • Braking action: Automatic in the drum
  • Battery: Recommended 650 CCA minimum for winching
  • Battery: 25mm2,72?(1.83m)
  • Fairlead: 4-way Roller fairlead
  • Wire rope: 3/8"×85'(9.5mm ×26m)
  • Drum size: 2.5"×8.9"(64mm×226mm)

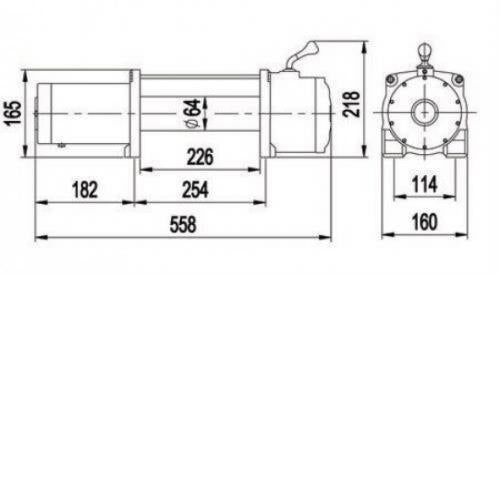

  • Dimensions: 21.6"×6.3"×8.6"( 548mm×160mm×218mm)
  • Mounting bolt pattern: 10"×4.5"(254mm×114.3mm)
  • W: 93 lbs (42kgs)
• Packaging: 63 x 36 x 26 cm
• Volumetric Weight: 15 kg
• Actual Weight: 42 kg
• Others: L-GOO

Product Outline:

• This is an Electric Winch which is packed with the features you just want: Efficient Three-stage Planetary Gear Train, Automatic Braking Action, Handheld Corded Remote Switch, Free Spooling Clutch, Power IN and OUT, and a 4-Way Roller Fairlead etc. Powerful HorsePower, Extra Fast Speed, and Compact Design make this winch a must-have for recovery applications.

Features:

• 12,000LB( single line rated pull )Electric Winch
• Efficient Three-stage Planetary Gear Train helps to offer powerful horsepower
• 4-Way Roller Fairlead to guide the rope onto the drum evenly

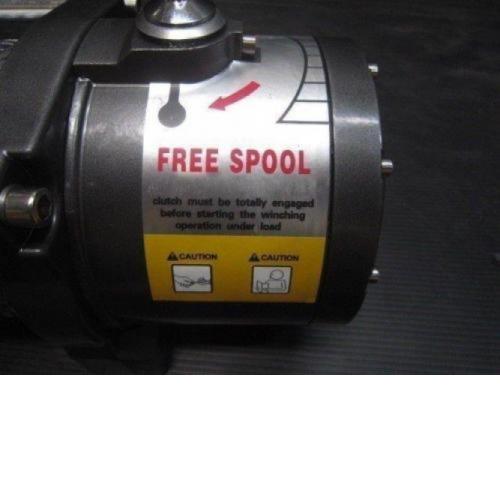

• Free spooling clutch allows the wire rope to be pulled out without using electric power
• Power IN and OUT through a remote switch with 12ft leads or Wireless Remote Control
• Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
• Extra protective casings for connectors, insuring safety and low wear-out.
• Custom gaskets seal up critical inner components from water and debris infiltration

Compatibility:

• -

Disclaimer:

• Do not use winch as a hoist, do not use for transportation of people.
• Don't operate and spool under full load over one minute continuously.
• While motor is over heating, please stop for a while to cool down.
• 1 Year Manufacturer Warranty. (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)
• Please ensure compatibility before purchase
