Product Overview :

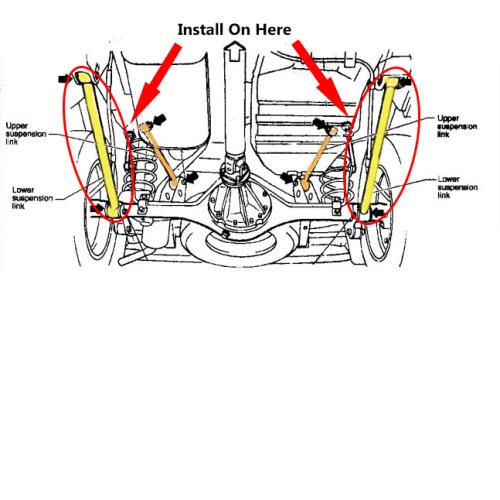

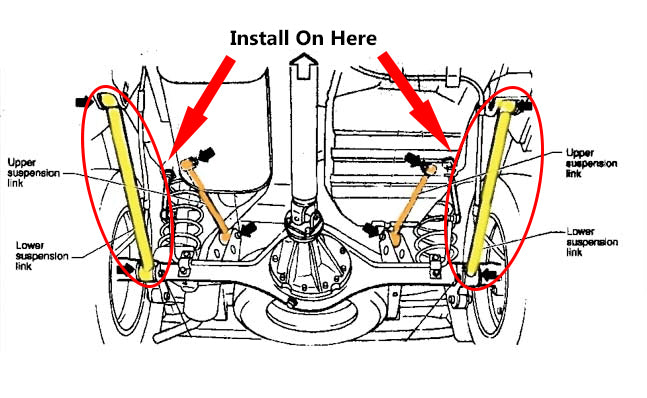

The rear lower control arms are part of the rear four link rear suspension. When the rear suspension is lifted, the axle will rotate backwards thus forcing the differential pinion to point upwards. The result is that the pinion angle of the rear differential and the flange on the transfer case isn't parallel. This most likely will introduce vibration(s) into the drive shaft. Installing adjustable upper rear control arms adjustable, one can now rotate the pinion angle down and correct the angles, thus eliminating or minimizing vibration(s).
These lower control arm is designed to replace the factory fixed arm to allow for pinion angle changes after lifting the suspension. Also can be used to position the rear wheels forward or backwards when used with different length / adjustable lower arms. Designed in a heavy duty 36mm thick body tubing and tig welded for strength these arms offer over 150 mm of adjustment and made in an on car adjustable design. Supplied with new rubber bushes and coated black to blend with the chassis.
These arms are a complete replacement with new Rubber bushes. The joint allows adjustment of the arms on the truck. Now with black powder coating for maximum corrosion resistance.
Features :
- Correct driveline and pinion angles
- Easy on-vehicle adjustment
- 2" - 4" adjustment
- Solid 42 mm thick body
- Over-engineered construction
- 60% increase in eye wall thickness.
- Deeper penetrating welds

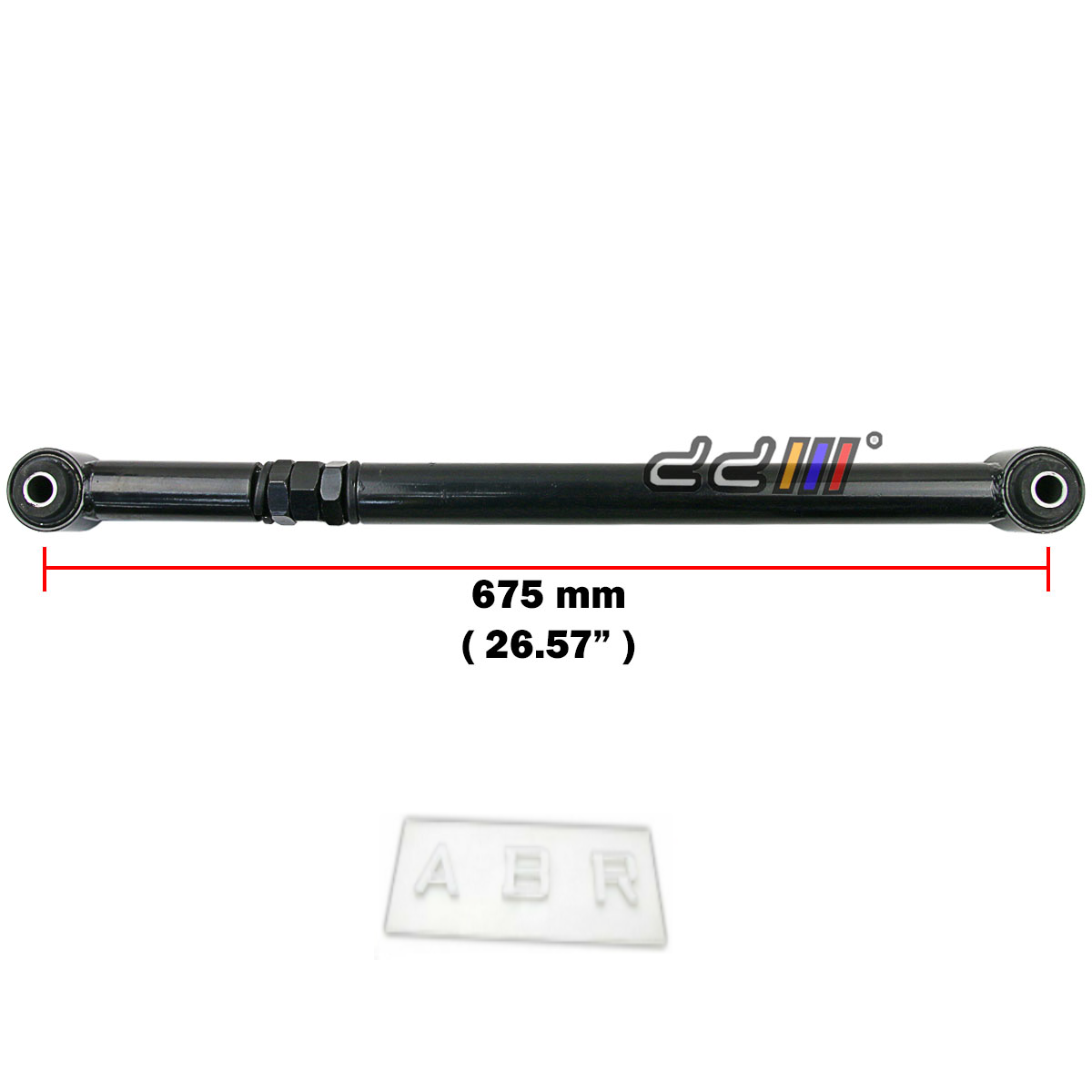

- Min. Length : 675 mm ( 26.57" )

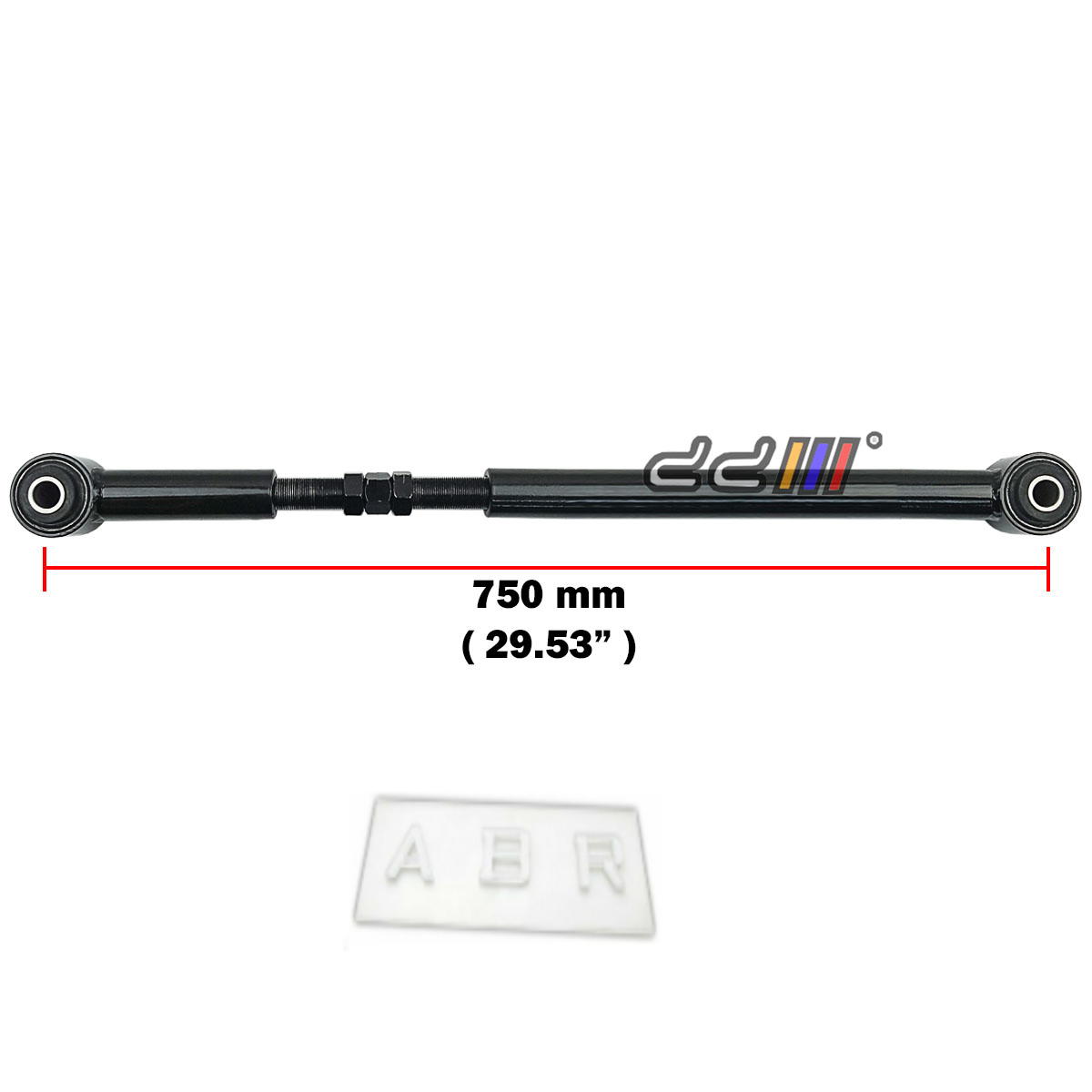

- Max. Length : 750 mm ( 29.53" )
Notes :
- Not Including Installation Guide or Manual
- Professional Installation is Recommended
Applications ( Fits For Below Vehicles ) :
| Model Year |
Model |
Chassis Code |
Engine Code |
Engine Size |
Notes |
| 1990 - 1992 |
Land Cruiser 80 |
FJ80 |
3F-E |
4.0L |
Lift Up 2" - 4" Model |
| 1992 - 1997 |
Land Cruiser 80 |
FZJ80 |
1FZ-FE |
4.5L |
Lift Up 2" - 4" Model |
| 1990 - 1995 |
Land Cruiser 80 |
HDJ80 / HDJ81 |
1HD-T |
4.2L |
Lift Up 2" - 4" Model |
| 1995 - 1997 |
Land Cruiser 80 |
HDJ80 / HDJ81 |
1HD-FT |
4.2L |
Lift Up 2" - 4" Model |
| 1990 - 1997 |
Land Cruiser 80 |
HZJ80 / HZJ81 |
1HZ |
4.2L |
Lift Up 2" - 4" Model |
| 1998 - 2007 |
Land Cruiser 105 |
FZJ105 |
1FZ-FE |
4.5L |
Lift Up 2" - 4" Model |
| 1998 - 2007 |
Land Cruiser 105 |
HZJ105 |
1HZ |
4.2L |
Lift Up 2" - 4" Model |
| 1995 - 1997 |
LX450 |
FZJ80 |
1FZ-FE |
4.5L |
Lift Up 2" - 4" Model |
*** Please make sure it fit your car before purchase ***
*** Most of the images provided are for illustration purposes only and may not be the actual products.
Package Content :

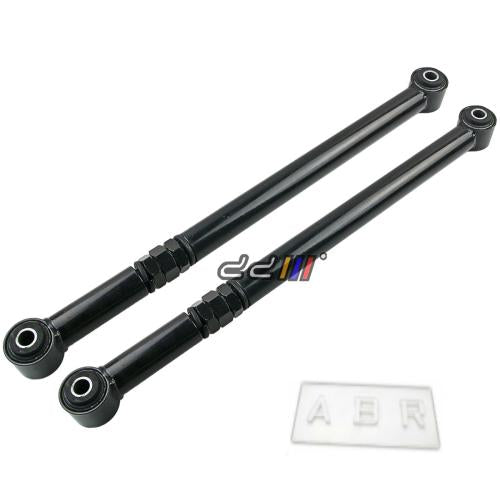

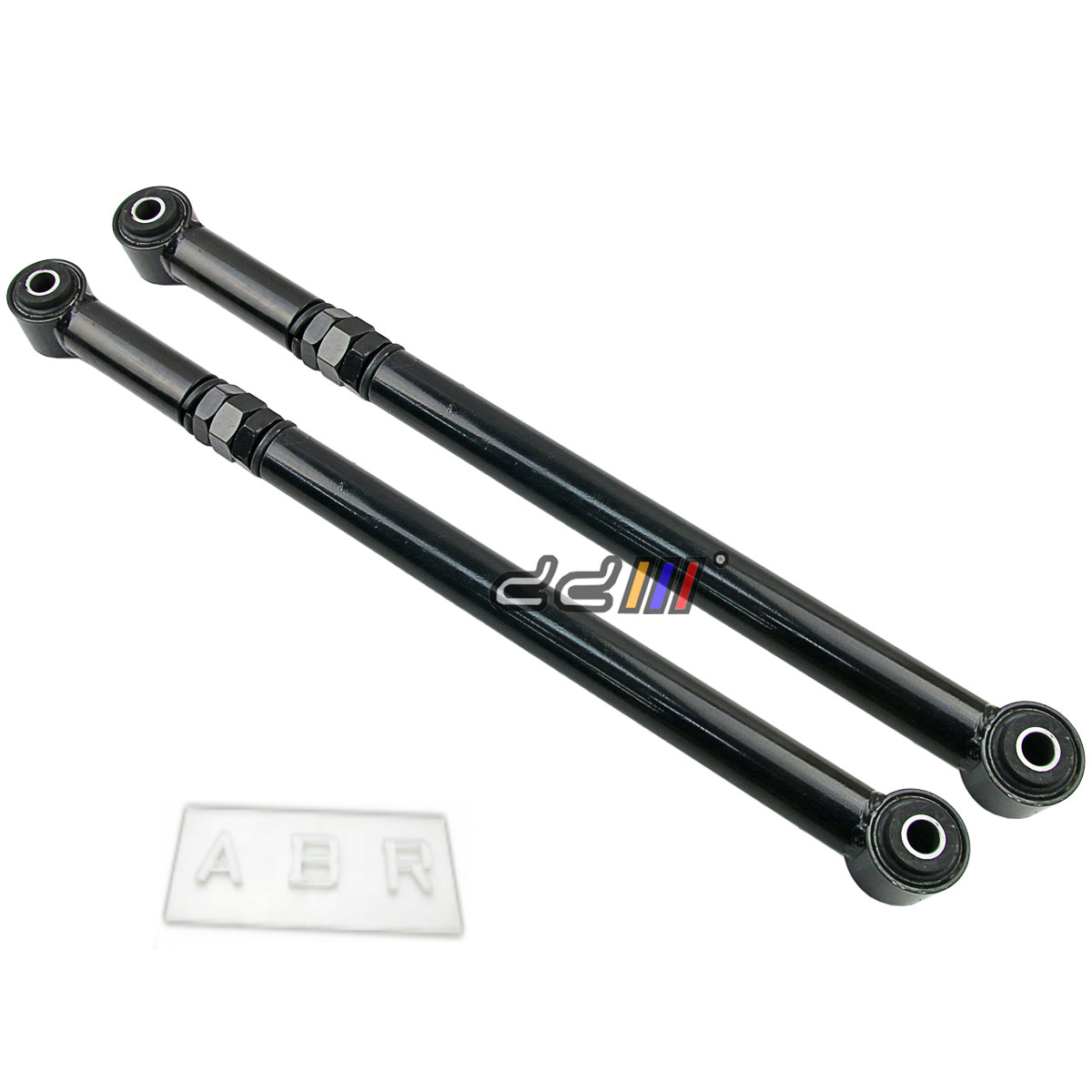

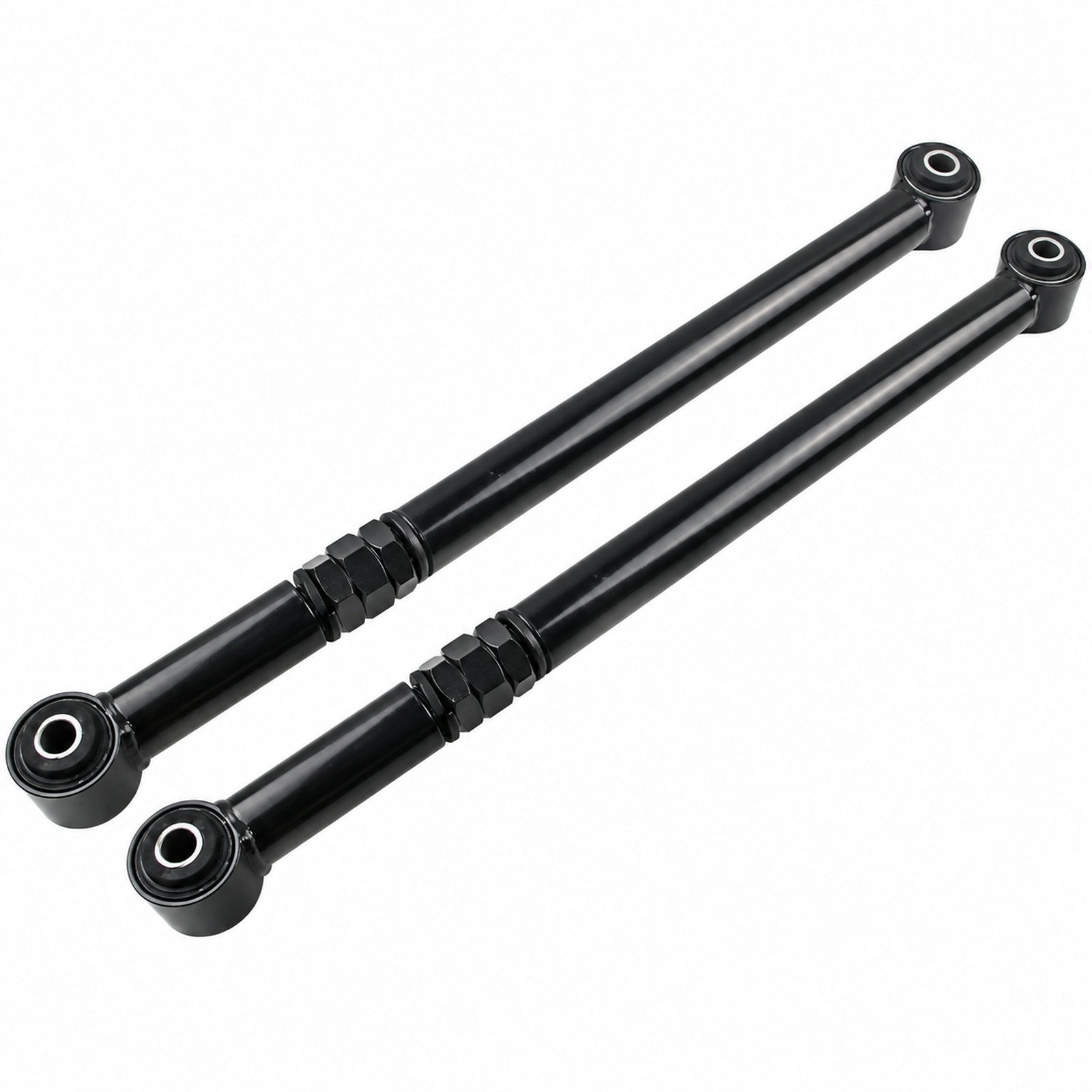

- 1 Pair ( Left + Right ) Adjustable Rear Lower Trailing Arm
Packing Size : 77 x 16 x 10 cm
Packing Weight : 11 kg
Actual Weight : 11 kg
